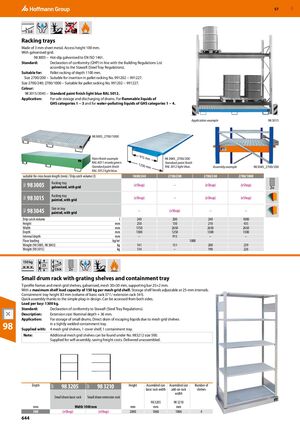

GBP 57 3.0 ​Racking trays Made of 3 mm sheet metal. Access height 100 mm. With galvanised grid. 98 3005 – Hot-dip galvanised to EN ISO 1461. Standard: Declaration of conformity (ÜHP) in line with the Building Regulations List according to the StawaR (Steel Tray Regulations). Suitable for: Pallet racking of depth 1100 mm. Size 2700/200 – Suitable for insertion in pallet racking No. 991202 − 991227. Size 2700/240; 2700/1000 – Suitable for pallet racking No. 991202 − 991227. Colour: 98 3015/3045 – Standard paint finish light blue RAL 5012. Application: For safe storage and discharging of drums. For flammable liquids of GHS categories 1 − 3 and for water-polluting liquids of GHS categories 1 − 4. Application example 98 3015 98 3005_2700/1000 915 m Paint finish example m 98 3045_2700/200 RAL 6011 reseda green. Standard paint finish 1250 Standard paint finish mm RAL 5012 light blue. Assembly example 98 3045_2700/200 RAL 5012 light blue. suitable for cross beam length (mm) / Drip catch volume (l) 1800/240 2700/200 2700/240 2700/1000 Racking tray 98 3005 96U (eShop) – (eShop) (eShop) galvanised, with grid Zn Racking tray 98 3015 96U (eShop) – (eShop) (eShop) painted, with grid Slot-in tray 98 3045 96U – (eShop) – – painted, with grid Drip catch volume l 240 200 240 1000 Height mm 250 130 210 435 Width mm 1750 2650 2650 2650 Depth mm 1300 1250 1300 1300 Internal depth mm – 915 – – Floor loading kg/m2 1000 Weight (98 3005, 98 3045) kg 141 151 200 239 Weight (98 3015) kg 134 – 190 226 150 kg 25 Click Zn ​Small drum rack with grating shelves and containment tray T-profile frames and mesh grid shelves, galvanised, mesh 30×30 mm, supporting bar 25×2 mm. With a maximum shelf load capacity of 150 kg per mesh grid shelf. Storage shelf levels adjustable at 25-mm intervals. Containment tray height 83 mm (volume of basic rack 37 l / extension rack 34 l). Quick assembly thanks to the simple plug-in design. Can be accessed from both sides. Load per bay: 1300 kg. Standard: Declaration of conformity to StawaR (Steel Tray Regulations). Description: Extension size: Nominal depth + 36 mm. Application: For storage of small drums. Direct drain of escaping liquids due to mesh grid shelves 98 in a tightly welded containment tray. Supplied with: 4 mesh grid shelves, 1 cover shelf, 1 containment tray. Note: Additional mesh grid shelves can be found under No. 983212 size 500. Supplied for self-assembly, saving freight costs. Delivered unassembled. Depth 98 3205 98 3210 Height Assembled size Assembled size Number of 96P 96P basic rack width add-on rack shelves width Small drum basic rack Small drum extension rack ​ 98 3205 98 3210 ​ mm Width 1000 mm mm mm mm ​ 500 (eShop) (eShop) 2000 1060 1006 4 644
