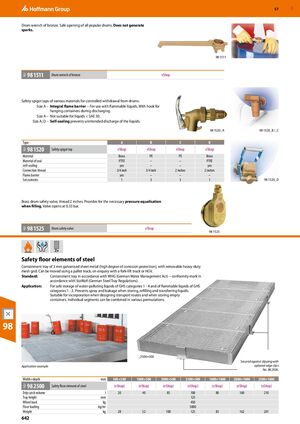

GBP 57 Drum wrench of bronze. Safe opening of all popular drums. Does not generate sparks. 98 1511 98 1511 Drum wrench of bronze eShop 96V Safety spigot taps of various materials for controlled withdrawal from drums. Size A – Integral flame barrier − For use with flammable liquids. With hook for hanging containers during discharging. Size A – Not suitable for liquids < SAE 30. Size A; D – Self-sealing prevents unintended discharge of the liquids. 98 1520_A 98 1520_B /_C Type A B C D 98 1520 Safety spigot tap eShop eShop eShop eShop 96V Material Brass PE PE Brass Material of seal PTFE – – PTFE self-sealing yes – – yes Connection thread 3/4 inch 3/4 inch 2 inches 2 inches Flame barrier yes – – – Set contents 1 3 3 1 98 1520_D Brass drum safety valve, thread 2 inches. Provides for the necessary pressure equalisation when filling. Valve opens at 0.35 bar. 98 1525 Drum safety valve eShop 96V 98 1525 Zn ​Safety floor elements of steel Containment tray of 3 mm galvanised sheet metal (high degree of corrosion protection), with removable heavy-duty mesh grid. Can be moved using a pallet truck, on enquiry with a fork-lift truck or HGV. Standard: Containment tray in accordance with WHG (German Water Management Act) – conformity mark in accordance with StaWaR (German Steel Tray Regulations). Application: For safe storage of water-polluting liquids of GHS categories 1 - 4 and of flammable liquids of GHS categories 1 - 3. Prevents spray and leakage when storing, refilling and transferring liquids. Suitable for incorporation when designing transport routes and when storing empty containers. Individual segments can be combined in various permutations. 98 _2500×500 Secured against slipping with Application example optional edge clips No. 98 2506. Width×depth mm 500×500 1000×500 2000×500 2500×500 1000×1000 2000×1000 2500×1000 98 2500 96U Safety floor element of steel (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Drip catch volume l 20 40 85 100 80 160 210 Tray height mm 123 Wheel load kg 450 Floor loading kg/m2 5000 Weight kg 28 52 100 125 83 162 201 642
