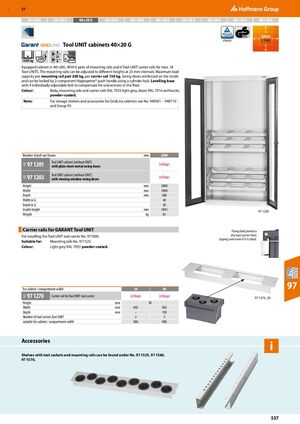

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 557

GBP 57 20×20 G 30×20 G 40×20 G 50×20 G 60×20 G 80×20 G 30×28 G 40×28 G 60×28 G 80×28 G Tool UNIT cabinets 40×20 G 25 1000 kg 250° Equipped cabinet in 40×20G. With 6 pairs of mounting rails and 6 Tool-UNIT carrier rails for max. 18 Tool-UNITS. The mounting rails can be adjusted to different heights at 25 mm intervals. Maximum load capacity per mounting rail pair 200 kg, per carrier rail 150 kg. Swing doors reinforced on the inside and can be locked by 2-component Haptoprene® push handle using a cylinder lock. Levelling base with 4 individually adjustable feet to compensate for unevenness in the floor. Colour: Body, mounting rails and carrier rails RAL 7035 light grey, doors RAL 7016 anthracite, powder-coated. Note: For storage shelves and accessories for GridLine cabinets see No. 940501 – 940710 and Group 95. Number of pull-out frames mm 2000 Tool UNIT cabinet (without UNIT) 97 1201 (eShop) 9GI with plain sheet metal swing doors Tool UNIT cabinet (without UNIT) 97 1203 (eShop) 9GI with viewing window swing doors Height mm 2000 Width mm 1000 Depth mm 500 Width in G 40 Depth in G 20 Usable height mm 1845 97 1203 Weight kg 81 Carrier rails for GARANT Tool UNIT ​ Fixing fold prevents For installing the Tool UNIT tool carrier No. 971000. the tool carrier from tipping over even if it is tilted. Suitable for: Mounting rails No. 971525. Colour: Light grey RAL 7035 powder-coated. for cabinet / compartment width 30 40 97 97 1270 Carrier rail for Tool UNIT tool carrier (eShop) (eShop) 9GI 97 1270_30 Height mm 50 Width mm 692 942 Depth mm – 150 Number of tool carriers Tool-UNIT 2 3 suitable for cabinet / compartment width 30G 40G Accessories Shelves with tool sockets and mounting rails can be found under No. 97 1525, 97 1560, 97 1570. 557
