Производственная мебель и системы хранения Hoffmann Group 2026 - страница 547

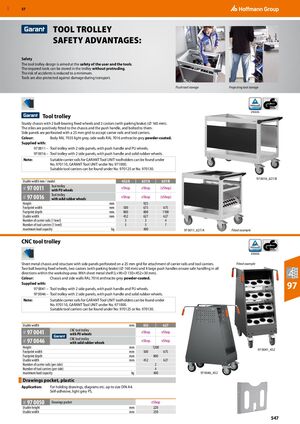

GBP 57 TOOL TROLLEY SAFETY ADVANTAGES: Safety The tool trolley design is aimed at the safety of the user and the tools. The required tools can be stored in the trolley without protruding. The risk of accidents is reduced to a minimum. Tools are also protected against damage during transport. Flush tool storage Projecting tool storage Tool trolley Sturdy chassis with 2 ball-bearing fixed wheels and 2 castors (with parking brake) (⌀ 160 mm). The stiles are positively fitted to the chassis and the push handle, and bolted to them. Side panels are perforated with a 25 mm grid to accept carrier rails and tool carriers. Colour: Body RAL 7035 light grey, side walls RAL 7016 anthracite grey powder-coated. Supplied with: 97 0011 – Tool trolley with 2 side panels, with push handle and PU wheels. 97 0016 – Tool trolley with 2 side panels, with push handle and solid rubber wheels. Note: Suitable carrier rails for GARANT Tool UNIT toolholders can be found under No. 970110, GARANT Tool UNIT under No. 971000. Suitable tool carriers can be found under No. 970125 or No. 970130. 97 0016_627/B Usable width mm / model 452/A 627/A 627/B Tool trolley 97 0011 eShop eShop (eShop) 91L with PU wheels Tool trolley 97 0016 eShop eShop (eShop) 91L with solid rubber wheels Height mm 925 Footprint width mm 500 675 675 Footprint depth mm 800 800 1100 Usable width mm 452 627 627 Number of carrier rails (1 level) 3 3 4 Number of tool carriers (1 level) 5 5 7 maximum load capacity kg 400 97 0011_627/A Fitted example ​CNC tool trolley Sheet metal chassis and structure with side panels perforated on a 25 mm grid for attachment of carrier rails and tool carriers. Fitted example Two ball bearing fixed wheels, two castors (with parking brake) (⌀ 160 mm) and 4 large push handles ensure safe handling in all directions within the workshop area. With sheet metal shelf (L×W×D 150×452×30 mm). Colour: Chassis and side walls RAL 7016 anthracite grey powder-coated. Supplied with: 97 0041 – Tool trolley with 2 side panels, with push handle and PU wheels. 97 97 0046 – Tool trolley with 2 side panels, with push handle and solid rubber wheels. Note: Suitable carrier rails for GARANT Tool UNIT toolholders can be found under No. 970110, GARANT Tool UNIT under No. 971000. Suitable tool carriers can be found under No. 970125 or No. 970130. Usable width mm 452 627 CNC tool trolley 97 0041 eShop eShop 91L with PU wheels CNC tool trolley 97 0046 eShop eShop 91L with solid rubber wheels Height mm 1200 97 0041_452 Footprint width mm 500 675 Footprint depth mm 800 Usable width mm 452 627 Number of carrier rails (per side) 2 Number of tool carriers (per side) 4 maximum load capacity kg 400 97 0046_452 Drawings pocket, plastic ​ Application: For holding drawings, diagrams etc. up to size DIN A4. Self-adhesive, light grey PS. 97 0050 Drawings pocket eShop 91L Usable height mm 220 Usable width mm 230 547
