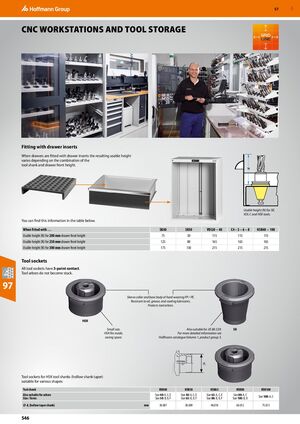

GBP 57 CNC WORKSTATIONS AND TOOL STORAGE Fitting with drawer inserts When drawers are fitted with drawer inserts the resulting usable height varies depending on the combination of the tool shank and drawer front height. Usable height (N) for SK, VDI, C and HSK tools. You can find this information in the table below. When fitted with … SK40 SK50 VDI20 − 40 C4 – 5 – 6 – 8 HSK40 − 100 Usable height (N) for 200 mm drawer front height 75 30 115 115 115 Usable height (N) for 250 mm drawer front height 125 80 165 165 165 Usable height (N) for 300 mm drawer front height 175 130 215 215 215 Tool sockets All tool sockets have 3-point contact. Tool arbors do not become stuck. 97 Sleeve collar and base body of hard-wearing PP / PE. Resistant to oil, grease, and cooling lubricants. Protects tool arbors. HSK Small size. Also suitable for JIS B6 339. SK HSK fits inside, For more detailed information see saving space. Hoffmann catalogue Volume 1, product group 3. d2 Tool sockets for HSK tool shanks (hollow shank taper) suitable for various shapes: Tool shank HSK40 HSK50 HSK63 HSK80 HSK100 Also suitable for arbors Size 40: A, C, E Size 50: A, C, E Size 63: A, C, E Size 80: A, C Size 100: A, C Size / form: Size 50: B, D, F Size 63: B, D, F Size 80: B, D, F Size 100: B, D ⌀ d2 (hollow taper shank) mm 30.007 38.009 48.010 60.012 75.013 546
