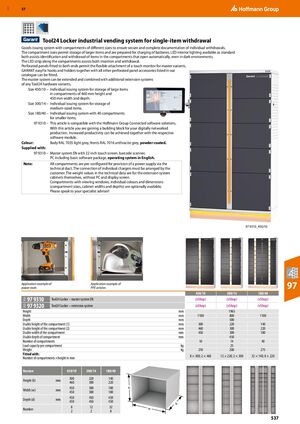

GBP 57 Tool24 Locker industrial vending system for single-item withdrawal Goods issuing system with compartments of different sizes to ensure secure and complete documentation of individual withdrawals. The compartment sizes permit storage of larger items and are prepared for charging of batteries. LED interior lighting available as standard both assists identification and withdrawal of items in the compartments that open automatically, even in dark environments. The LED strip along the compartments assists both insertion and withdrawal. Perforated panels fitted to both ends permit the flexible attachment of a touch monitor for master variants. GARANT easyFix hooks and holders together with all other perforated panel accessories listed in our catalogue can be fitted. The master system can be extended and combined with additional extension systems of any Tool24 hardware variants. Size 450/10 – Individual issuing system for storage of large items in compartments of 460 mm height and 450 mm width and depth. Size 300/14 – Individual issuing system for storage of medium-sized items. Size 180/40 – Individual issuing system with 40 compartments for smaller items. 97 9310 – This article is compatible with the Hoffmann Group Connected software solutions. With this article you are gaining a building block for your digitally networked production. Increased productivity can be achieved together with the respective software module. Colour: Body RAL 7035 light grey, fronts RAL 7016 anthracite grey, powder-coated. Supplied with: 97 9310 – Master system EN with 22 inch touch screen, barcode scanner, PC including basic software package, operating system in English. Note: All compartments are pre-configured for provision of a power supply via the technical duct. The connection of individual chargers must be arranged by the customer. The weight values in the technical data are for the extension system cabinets themselves, without PC and display screen. Compartments with viewing windows, individual colours and dimensions (compartment sizes, cabinet widths and depths) are optionally available. Please speak to your specialist adviser! 97 9310_450/10 Application example of power tools Application example of PPE articles 97 ​ 450/10 300/14 180/40 97 9310 Tool24 Locker – master system EN (eShop) (eShop) (eShop) 9SA 9SA 97 9320 Tool24 Locker – extension system (eShop) (eShop) (eShop) Height mm 1965 Width mm 1100 800 1100 Depth mm 500 Usable height of the compartment (1) mm 300 220 140 Usable height of the compartment (2) mm 460 300 220 Usable width of the compartment mm 450 300 180 Usable depth of compartment mm 450 Number of compartments 10 14 40 Load capacity per compartment kg 25 Weight kg 210 200 275 Fitted with: 8 × 300; 2 × 460 12 × 220; 2 × 300 32 × 140; 8 × 220 Number of compartments ×height in mm Version 450/10 300/14 180/40 300 220 140 Height (h) mm 460 300 220 450 300 180 h Width (w) mm 450 300 180 450 450 450 Depth (d) mm 450 450 450 d 8 12 32 w Number 2 2 8 537
