Производственная мебель и системы хранения Hoffmann Group 2026 - страница 536

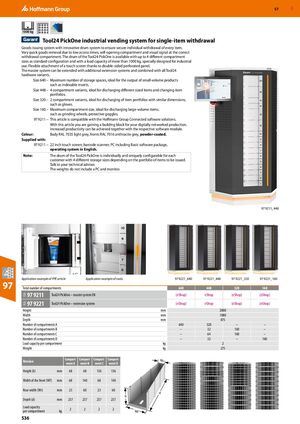

GBP 57 1000 kg Tool24 PickOne industrial vending system for single-item withdrawal Goods issuing system with innovative drum system to ensure secure individual withdrawal of every item. Very quick goods removal due to low access times, self-opening compartment and visual signal at the correct withdrawal compartment. The drum of the Tool24 PickOne is available with up to 4 different compartment sizes as standard configuration and with a load capacity of more than 1000 kg, specially designed for industrial use. Flexible attachment of a touch screen thanks to double-sided perforated panel. The master system can be extended with additional extension systems and combined with all Tool24 hardware variants. Size 640 – Maximum number of storage spaces, ideal for the output of small-volume products such as indexable inserts. Size 448 – 4 compartment variants, ideal for discharging different sized items and changing item portfolios. Size 320 – 2 compartment variants, ideal for discharging of item portfolios with similar dimensions, such as gloves. Size 160 – Maximum compartment size, ideal for discharging large-volume items, such as grinding wheels, protective goggles. 97 9211 – This article is compatible with the Hoffmann Group Connected software solutions. With this article you are gaining a building block for your digitally networked production. Increased productivity can be achieved together with the respective software module. Colour: Body RAL 7035 light grey, fronts RAL 7016 anthracite grey, powder-coated. Supplied with: 97 9211 – 22 inch touch screen; barcode scanner; PC including Basic software package, operating system in English. Note: The drum of the Tool24 PickOne is individually and uniquely configurable for each customer with 4 different storage sizes depending on the portfolio of items to be issued. Talk to your technical adviser. The weights do not include a PC and monitor. 97 9211_448 Application example of PPE article Application example of tools. 97 9221_640 97 9221_448 97 9221_320 97 9221_160 97 Total number of compartments 640 448 320 160 97 9211 Tool24 PickOne – master system EN (eShop) eShop (eShop) (eShop) 9SA 97 9221 Tool24 PickOne – extension system (eShop) eShop (eShop) (eShop) 9SA Height mm 2000 Width mm 1080 Depth mm 875 Number of compartments A 640 320 – – Number of compartments B – 32 160 – Number of compartments C – 64 160 – Number of compartments D – 32 – 160 Load capacity per compartment kg 2 Weight kg 275 Compart- Compart- Compart- Compart- Wr Version ment A ment B ment C ment D Height (h) mm 68 68 136 136 Width of the front (Wf)  mm 68 140 68 140 Rear width (Wr) mm 23 60 23 60 d h Depth (d) mm 237 237 237 237 Load capacity 2 2 2 2 Wf per compartment kg 536
