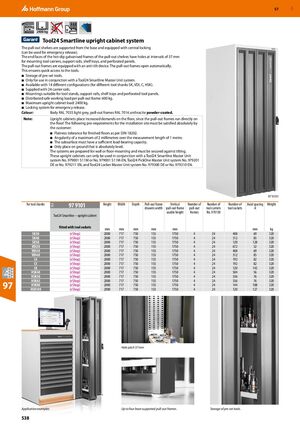

GBP 57 600kg 2400 kg Tool24 Smartline upright cabinet system The pull-out shelves are supported from the base and equipped with central locking (can be used for emergency release). The end faces of the hot-dip galvanised frames of the pull-out shelves have holes at intervals of 37 mm for mounting tool carriers, support rails, shelf trays, and perforated panels. The pull-out frames are equipped with an anti-tilt device. The pull-out frames open automatically. This ensures quick access to the tools. ■ Storage of pre-set tools. ■ Only for use in conjunction with a Tool24 Smartline Master Unit system. ■ Available with 14 different configurations (for different tool shanks SK, VDI, C, HSK). ■ Supplied with 24 carrier rails. ■ Mountings suitable for tool stands, support rails, shelf trays and perforated tool panels. ■ Distributed safe working load per pull-out frame: 600 kg. ■ Maximum upright cabinet load: 2400 kg. ■ Locking system for emergency release. Colour: Body RAL 7035 light grey, pull-out frames RAL 7016 anthracite powder-coated. Note: Upright cabinets place increased demands on the floor, since the pull-out frames run directly on the floor! The following pre-requirements for the installation site must be satisfied absolutely by the customer: ■ Flatness tolerance for finished floors as per DIN 18202. ■ Angularity of a maximum of 2 millimetres over the measurement length of 1 metre. ■ The subsurface must have a sufficient load-bearing capacity. ■ Only place on ground that is absolutely level. The systems are prepared for wall or floor-mounting and must be secured against tilting. These upright cabinets can only be used in conjunction with a Tool24 Smartline Master Unit system No. 979001 S11M or No. 979001 S11M-EN, Tool24 PickOne Master Unit system No. 979201 DE or No. 979211 EN, and Tool24 Locker Master Unit system No. 979300 DE or No. 979310 EN. 97 9101 for tool shanks 97 9101 Height Width Depth Pull-out frame Vertical Number of Number of Number of Axial spacing Weight 9SA drawers width pull-out frame pull-out tool carriers tool sockets A usable height frames No. 970130 Tool24 Smartline – upright cabinet fitted with tool sockets mm mm mm mm mm ​ ​ ​ mm kg SK30 (eShop) 2000 717 750 155 1750 4 24 408 69 320 SK40 (eShop) 2000 717 750 155 1750 4 24 312 85 320 SK50 (eShop) 2000 717 750 155 1750 4 24 120 128 320 VDI20 (eShop) 2000 717 750 155 1750 4 24 672 52 320 VDI30 (eShop) 2000 717 750 155 1750 4 24 408 69 320 VDI40 (eShop) 2000 717 750 155 1750 4 24 312 85 320 C4 (eShop) 2000 717 750 155 1750 4 24 192 82 320 C5 (eShop) 2000 717 750 155 1750 4 24 192 82 320 C6 (eShop) 2000 717 750 155 1750 4 24 120 142 320 HSK40 (eShop) 2000 717 750 155 1750 4 24 504 56 320 HSK50 (eShop) 2000 717 750 155 1750 4 24 336 76 320 HSK63 (eShop) 2000 717 750 155 1750 4 24 336 76 320 97 HSK80 HSK100 (eShop) (eShop) 2000 2000 717 717 750 750 155 155 1750 1750 4 4 24 24 144 120 108 127 320 320 Hole pitch 37 mm Application examples Up to four base-supported pull-out frames. Storage of pre-set tools. 538
