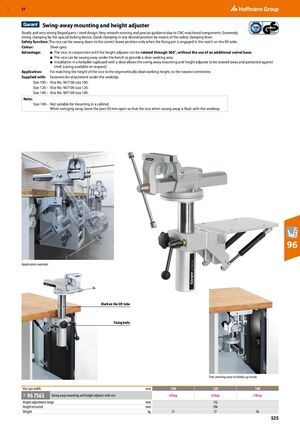

GBP 57 ​ Swing-away mounting and height adjuster Sturdy and very strong forged parts / steel design. Very smooth-running and precise guidance due to CNC-machined components. Extremely strong clamping by the special locking device. Quick clamping in any desired position by means of the safety clamping lever. Safety function: The vice can be swung down to the correct lower position only when the fixing pin is engaged in the notch on the lift tube. Colour: Silver-grey Advantage: ■ The vice, in conjunction with the height adjuster can be rotated through 360°, without the use of an additional swivel base. ■ The vice can be swung away under the bench to provide a clear working area. ■ Installation in a lockable cupboard with a door allows the swing away mounting and height adjuster to be stowed away and protected against theft (casing available on request). Application: For matching the height of the vice to the ergonomically ideal working height, to the nearest centimetre. Supplied with: Fasteners for attachment under the worktop. Size 100 – Vice No. 967100 size 100. Size 120 – Vice No. 967100 size 120. Size 140 – Vice No. 967100 size 140. Note: Size 140 – Not suitable for mounting in a cabinet. When swinging away, leave the jaws 50 mm open so that the vice when swung away is flush with the worktop. 96 Application example Mark on the lift tube Fixing bolts Free working area in folded-up mode. Vice jaw width mm 100 120 140 96 7565 Swing away mounting and height adjuster with vice eShop eShop eShop 91J Height adjustment range mm 132 Height retracted mm 296 Weight kg 21 27 36 525
