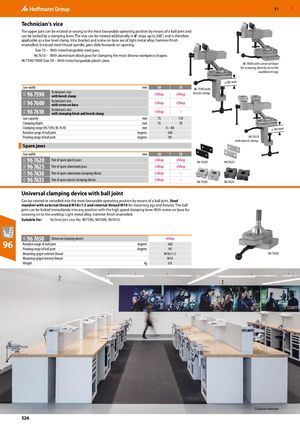

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 526

GBP 57 ​Technician‘s vice The upper part can be rotated or swung to the most favourable operating position by means of a ball joint and can be locked by a clamping lever. The vice can be rotated additionally in 6° steps up to 360°; and is therefore applicable as a low level clamp. Vice, bracket and screw on base are of light metal alloy, hammer finish enamelled. Enclosed steel thread spindle, jaws slide forwards on opening. Size 75 – With interchangeable steel jaws. 96 7610 – With aluminium block jaws for clamping the most diverse workpiece shapes. 96 7590/7600 Size 50 – With interchangeable plastic jaws. 96 7600 with screw-on base for screwing directly on to the workbench top. ≤ 80 mm Jaw width mm 50 75 96 7590 with Technician’s vice 96 7590 eShop eShop bench clamp. 97G with bench clamp Technician’s vice 96 7600 eShop eShop 97G with screw-on base Technician’s vice 96 7610 eShop – 97G with clamping block and bench clamp Jaw capacity mm 75 110 Clamping depth mm 35 50 Clamping range (96 7590, 96 7610) mm 0 – 80 ≤ 80 mm Rotation range of ball joint degrees 360 Pivoting range of ball joint degrees 90 96 7610 with bench clamp. Spare jaws ​ Jaw width mm 50 75 96 7620 Pair of spare plastic jaws eShop eShop 97G 97G 97G 97G 96 7620 96 7625 96 7625 Pair of spare aluminium jaws eShop eShop 96 7630 Pair of spare aluminium clamping blocks eShop – 96 7635 Pair of spare plastic clamping blocks eShop – 96 7630 96 7635 ​Universal clamping device with ball joint Can be rotated or swivelled into the most favourable operating position by means of a ball joint. Steel mandrel with external thread M18×1.5 and internal thread M10 for mounting jigs and fixtures. The ball joint can be locked immediately into any position with the high speed clamping lever. With screw-on base for screwing on to the worktop. Light metal alloy, hammer finish enamelled. Suitable for: Technician’s vice No. 967590, 967600, 967610. 96 7650 Universal clamping device eShop 97G 96 Rotation range of ball joint Pivoting range of ball joint degrees degrees 360 90 Mounting spigot external thread M18×1.5 96 7650 Mounting spigot internal thread M10 Weight kg 0.9 Customer example 526
