Производственная мебель и системы хранения Hoffmann Group 2026 - страница 524

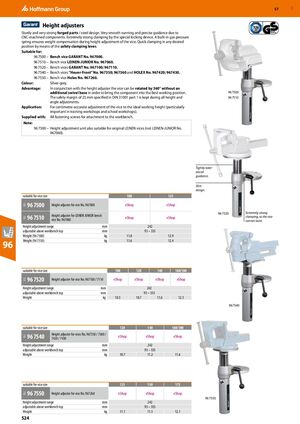

GBP 57 ​ Height adjusters Sturdy and very strong forged parts / steel design. Very smooth-running and precise guidance due to CNC-machined components. Extremely strong clamping by the special locking device. A built-in gas pressure spring ensures weight compensation during height adjustment of the vice. Quick clamping in any desired position by means of the safety clamping lever. Suitable for: 96 7500 – Bench vice GARANT No. 967000. 96 7510 – Bench vice LEINEN-JUNIOR No. 967060. 96 7520 – Bench vices GARANT No. 967100; 967110. 96 7540 – Bench vices “Heuer-Front” No. 967350; 967360 and HOLEX No. 967420; 967430. 96 7550 – Bench vice Holex No. 967260. Colour: Silver-grey. Advantage: In conjunction with the height adjuster the vice can be rotated by 360° without an additional swivel base in order to bring the component into the best working position. ​ 96 7500 The safety margin of 25 mm specified in DIN 31001 part 1 is kept during all height and ​ 96 7510 angle adjustments. Application: For centimetre-accurate adjustment of the vice to the ideal working height (particularly important in training workshops and school workshops). Supplied with: All fastening screws for attachment to the workbench. Note: 96 7500 – Height adjustment unit also suitable for original LEINEN vices (not LEINEN-JUNIOR No. 967060). Tightly-toler- anced guidance. Slim design. suitable for vice size 100 125 96 7500 Height adjuster for vice No. 967000 eShop eShop 91J ​ 96 7520 Extremely strong Height adjuster for LEINEN JUNIOR bench 96 7510 eShop eShop clamping, so the vice 91J vice No. 967060 cannot twist. Height adjustment range mm 242 adjustable above workbench top mm 93 – 335 Weight (96 7500) kg 11.8 12.9 Weight (96 7510) kg 11.6 12.4 96 suitable for vice size 100 120 140 160/180 96 7520 Height adjuster for vice No. 967100 / 7110 eShop eShop eShop eShop 91J Height adjustment range mm 242 adjustable above workbench top mm 93 – 335 Weight kg 10.3 10.7 11.6 12.3 96 7540 suitable for vice size 120 140 160/180 Height adjuster for vices No. 967350 / 7360 / 96 7540 eShop eShop eShop 91J 7420 / 7430 Height adjustment range mm 242 adjustable above workbench top mm 93 – 335 Weight kg 10.7 11.2 11.6 suitable for vice size 125 150 175 96 7550 Height adjuster for vice No. 967260 eShop eShop eShop 91J 96 7550 Height adjustment range mm 242 adjustable above workbench top mm 93 – 335 Weight kg 11.1 11.5 12.1 524
