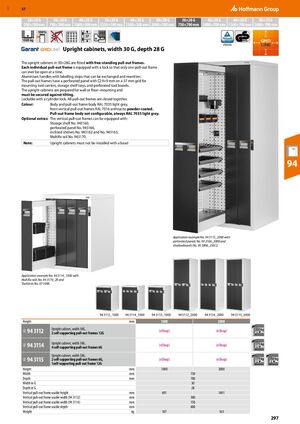

GBP 57 20×20 G 30×20 G 40×20 G 50×20 G 60×20 G 80×20 G 30×28 G 40×28 G 60×28 G 80×28 G 500×500 mm 750×500 mm 1000×500 mm 1250×500 mm 1500×500 mm 2000×500 mm 750×700 mm 1000×700 mm 1500×700 mm 2000×700 mm 100% 37 1000 kg Upright cabinets, width 30 G, depth 28 G The upright cabinets in 30×28G are fitted with free-standing pull-out frames. Each individual pull-out frame is equipped with a lock so that only one pull-out frame can ever be open at a time. Aluminium handles with labelling strips that can be exchanged and rewritten. The pull-out frames have a perforated panel with □ 9×9 mm on a 37 mm grid for mounting tool carriers, storage shelf trays, and perforated tool boards. The upright cabinets are prepared for wall or floor−mounting and must be secured against tilting. Lockable with a cylinder lock. All pull-out frames are closed together. Colour: Body and pull-out frame body RAL 7035 light grey, front vertical pull-out frames RAL 7016 anthracite powder-coated. Pull-out frame body not configurable, always RAL 7035 light grey. Optional extras: The vertical pull-out frames can be equipped with: Storage shelf No. 943160, perforated panel No. 943166, inclined shelves No. 943162 and No. 943163, Multifix rail No. 943170. Note: Upright cabinets must not be installed with a base! 94 Application example No. 94 3115_2000 with perforated panels No. 94 3166_2000 and shadowboards No. 95 5806_250/2. Application example No. 94 3114_1000 with Multifix rails No. 94 3170_28 and ToolUnits No. 97 1000. 94 3112_1000 94 3114_1000 94 3115_1000 94 3112_2000 94 3114_2000 94 3115_2000 Height mm 1000 2000 Upright cabinet, width 30G, 350 kg 94 3112 (eShop) (eShop) 9GI 2 self-supporting pull-out frames 12G Upright cabinet, width 30G, 94 3114 (eShop) (eShop) 175 kg 9GI 4 self-supporting pull-out frames 6G Upright cabinet, width 30G, 94 3115 2 self-supporting pull-out frames 6G, (eShop) (eShop) 175 kg 350 kg 9GI 1self-supporting pull-out frame 12G Height mm 1000 2000 Width mm 750 Depth mm 700 Width in G 30 Depth in G 28 Vertical pull-out frame usable height mm 691 1691 Vertical pull-out frame usable width (94 3112) mm 300 Vertical pull-out frame usable width (94 3114) mm 150 Vertical pull-out frame usable depth mm 600 Weight kg 107 163 297
