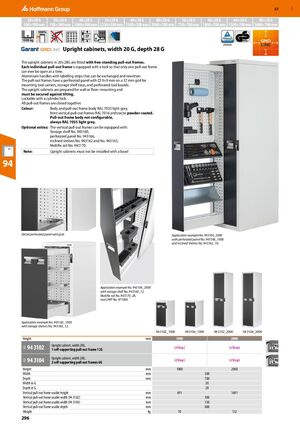

GBP 57 20×20 G 30×20 G 40×20 G 50×20 G 60×20 G 80×20 G 30×28 G 40×28 G 60×28 G 80×28 G 500×500 mm 750×500 mm 1000×500 mm 1250×500 mm 1500×500 mm 2000×500 mm 750×700 mm 1000×700 mm 1500×700 mm 2000×700 mm 100% 37 1000 kg Upright cabinets, width 20 G, depth 28 G The upright cabinets in 20×28G are fitted with free-standing pull-out frames. Each individual pull-out frame is equipped with a lock so that only one pull-out frame can ever be open at a time. Aluminium handles with labelling strips that can be exchanged and rewritten. The pull-out frames have a perforated panel with □ 9×9 mm on a 37 mm grid for mounting tool carriers, storage shelf trays, and perforated tool boards. The upright cabinets are prepared for wall or floor−mounting and must be secured against tilting. Lockable with a cylinder lock. All pull-out frames are closed together. Colour: Body and pull-out frame body RAL 7035 light grey, front vertical pull-out frames RAL 7016 anthracite powder-coated. Pull-out frame body not configurable, always RAL 7035 light grey. Optional extras: The vertical pull-out frames can be equipped with: Storage shelf No. 943160, perforated panel No. 943166, inclined shelves No. 943162 and No. 943163, Multifix rail No. 943170. Note: Upright cabinets must not be installed with a base! 94 Detail perforated panel with grid. Application example No. 943104_2000 with perforated panel No. 943166_1000 and inclined shelves No. 943162_10. Application example No. 943104_2000 with storage shelf No. 943160_12, Multifix rail No. 943170_28, tool UNIT No. 971000 Application example No. 943102_1000 with storage shelves No. 943160_12. 94 3102_1000 94 3104_1000 94 3102_2000 94 3104_2000 Height mm 1000 2000 Upright cabinet, width 20G, 350 kg 94 3102 (eShop) (eShop) 9GI 1 self-supporting pull-out frame 12G Upright cabinet, width 20G, 94 3104 (eShop) (eShop) 175 kg 9GI 2 self-supporting pull-out frames 6G Height mm 1000 2000 Width mm 500 Depth mm 700 Width in G 20 Depth in G 28 Vertical pull-out frame usable height mm 691 1691 Vertical pull-out frame usable width (94 3102) mm 300 Vertical pull-out frame usable width (94 3104) mm 150 Vertical pull-out frame usable depth mm 600 Weight kg 70 112 296
