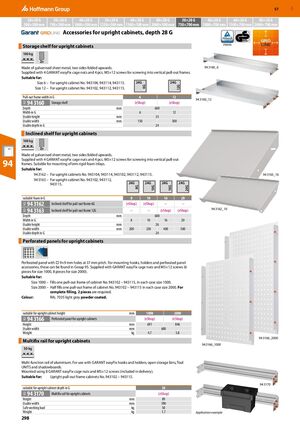

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 298

GBP 57 20×20 G 30×20 G 40×20 G 50×20 G 60×20 G 80×20 G 30×28 G 40×28 G 60×28 G 80×28 G 500×500 mm 750×500 mm 1000×500 mm 1250×500 mm 1500×500 mm 2000×500 mm 750×700 mm 1000×700 mm 1500×700 mm 2000×700 mm ​ Accessories for upright cabinets, depth 28 G Storage shelf for upright cabinets ​ 100 kg Zn Made of galvanised sheet metal, two sides folded upwards. 94 3160_6 Supplied with 4 GARANT easyFix cage nuts and 4 pcs. M5×12 screws for screwing into vertical pull-out frames. Suitable for: Size 6 – For upright cabinet No. 943104, 943114, 943115. 24G 24G 6G 12G Size 12 – For upright cabinet No. 943102, 943112, 943115. Pull-out frame width in G 6 12 94 3160_12 94 3160 Storage shelf (eShop) (eShop) 9GI Depth mm 600 Width in G 6 12 Usable height mm 33 Usable width mm 150 300 Usable depth in G 24 Inclined shelf for upright cabinets ​ 100 kg Zn Made of galvanised sheet metal, two sides folded upwards. Supplied with 4 GARANT easyFix cage nuts and 4 pcs. M5×12 screws for screwing into vertical pull-out 94 frames. Suitable for mounting eForm rigid foam inlays. Suitable for: 94 3162 – For upright cabinets No. 943104, 943114, 943102, 943112, 943115. 94 3163_16 94 3163 – For upright cabinet No. 943102, 943112, 943115. 24G 24G 24G 24G 8G 10G 16G 20G suitable foam in G 8 10 16 20 94 3162 Inclined shelf for pull-out frame 6G (eShop) (eShop) – – 9GI 9GI 94 3163 Inclined shelf for pull-out frame 12G – – (eShop) (eShop) 94 3162_10 Depth mm 600 Width in G 8 10 16 20 Usable height mm 26 Usable width mm 200 250 400 500 Usable depth in G 24 Perforated panels for upright cabinets ​ Perforated panel with □ 9×9 mm holes at 37 mm pitch. For mounting hooks, holders and perforated panel accessories, these can be found in Group 95. Supplied with GARANT easyFix cage nuts and M5×12 screws (6 pieces for size 1000, 8 pieces for size 2000). Suitable for: Size 1000 – Fills one pull-out frame of cabinet No. 943102 – 943115, in each case size 1000. Size 2000 – Half fills one pull-out frame of cabinet No. 943102 – 943115 in each case size 2000. For complete filling, 2 pieces are required. Colour: RAL 7035 light grey powder coated. suitable for upright cabinet height mm 1000 2000 94 3166 Perforated panel for upright cabinets (eShop) (eShop) 9GI Height mm 691 846 Usable width mm 600 Weight kg 4.7 5.8 94 3166_2000 Multifix rail for upright cabinets ​ 94 3166_1000 50 kg Multi-function rail of aluminium. For use with GARANT easyFix hooks and holders, open storage bins, Tool UNITS and shadowboards. Mounted using 8 GARANT easyFix cage nuts and M5×12 screws (included in delivery). Suitable for: Upright pull-out frame cabinets No. 943102 – 943115. 94 3170 suitable for upright cabinet depth in G 28 94 3170 Multifix rail for upright cabinets (eShop) 9GI Height mm 89 Usable width mm 590 Safe working load kg 50 Weight kg 1.7 Application example 298
