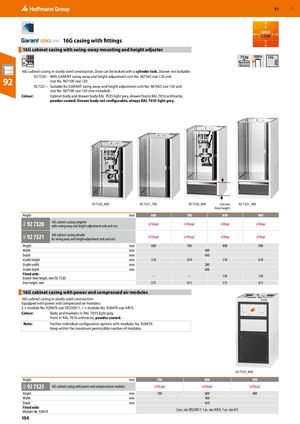

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 154

GBP 57 16G casing with fittings 16G cabinet casing with swing-away mounting and height adjuster ​ 75 kg 100% 12G 20G 16G cabinet casing in sturdy steel construction. Door can be locked with a cylinder lock. Drawer not lockable. 92 7320 – With GARANT swing away and height adjustment unit No. 967565 size 120 and 92 vice No. 967100 size 120. 92 7321 – Suitable for GARANT swing away and height adjustment unit No. 967565 size 120 and vice No. 967100 size 120 (not included). Colour: Cabinet body and drawer body RAL 7035 light grey, drawer fronts RAL 7016 anthracite, powder-coated. Drawer body not configurable, always RAL 7035 light grey. 92 7320_600 92 7321_700 92 7320_800 150 mm 92 7321_900 front height Height mm 600 700 800 900 16G cabinet casing complete 92 7320 9GG (eShop) (eShop) eShop eShop with swing away and height adjustment unit and vice 16G cabinet casing suitable 92 7321 9GG (eShop) (eShop) eShop eShop for swing away and height adjustment unit and vice Height mm 600 700 800 900 Width mm 400 Depth mm 650 Usable height mm 570 670 570 670 Usable width mm 280 Usable depth mm 600 Fitted with: – – 150 150 Drawer front height, mm (92 7320) Door height, mm 575 675 575 675 16G cabinet casing with power and compressed air modules ​ 16G cabinet casing in sturdy steel construction. Equipped with power and compressed air modules: 2 × module No. 928470 size DE250V/1, 1 × module No. 928470 size AIR/S. Colour: Body and modules in RAL 7035 light grey. Front in RAL 7016 anthracite, powder coated. Note: Further individual configuration options with modules No. 928470. Keep within the maximum permissible number of modules. 92 7325_800 Height mm 700 800 900 92 7325 9GG 16G cabinet casing with power and compressed air modules (eShop) (eShop) (eShop) Height mm 700 800 900 Width mm 400 Depth mm 650 Fitted with: 2 pcs. size DE250V/1; 1 pc. size AIR/S; 1 pc. size 0/3 Modules No. 928470 154
