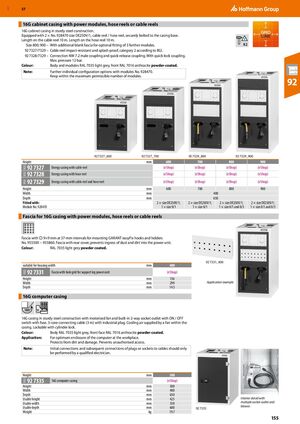

GBP 57 16G cabinet casing with power modules, hose reels or cable reels ​ 16G cabinet casing in sturdy steel construction. Equipped with 2 × No. 928470 size DE250V/1, cable reel / hose reel, securely bolted to the casing base. Length on the cable reel 10 m. Length on the hose reel 10 m. Size 800; 900 – With additional blank fascia for optional fitting of 3 further modules. K2 92 7327/7329 – Cable reel impact-resistant and splash-proof, category 2 according to BGI. 92 7328/7329 – Connection NW 7.2 male coupling and quick-release coupling. With quick-lock coupling. Max. pressure 12 bar. Colour: Body and modules RAL 7035 light grey, front RAL 7016 anthracite powder-coated. Note: Further individual configuration options with modules No. 928470. Keep within the maximum permissible number of modules. 92 92 7327_600 92 7327_700 92 7329_800 92 7329_900 Height mm 600 700 800 900 92 7327 9GG 9GG 9GG Energy casing with cable reel (eShop) (eShop) (eShop) (eShop) 92 7328 Energy casing with hose reel (eShop) (eShop) (eShop) (eShop) 92 7329 Energy casing with cable reel and hose reel (eShop) (eShop) (eShop) (eShop) Height mm 600 700 800 900 Width mm 400 Depth mm 650 Fitted with: 2 × size DE250V/1; 2 × size DE250V/1; 2 × size DE250V/1; 2 × size DE250V/1; Module No. 928470 1 × size 0/1 1 × size 0/1 1 × size 0/1 and 0/3 1 × size 0/1 and 0/3 Fascia for 16G casing with power modules, hose reels or cable reels ​ Fascia with □ 9×9 mm at 37-mm intervals for mounting GARANT easyFix hooks and holders No. 955500 − 955860. Fascia with rear cover, prevents ingress of dust and dirt into the power unit. Colour: RAL 7035 light grey powder coated. 92 7331_400 suitable for housing width mm 400 92 7331 9GG Fascia with hole grid for support leg power unit (eShop) Height mm 136 Width mm 299 Application example Depth mm 14.5 16G computer casing ​ 180° 16G casing in sturdy steel construction with motorised fan and built-in 2-way socket outlet with ON / OFF switch with fuse. 3-core connecting cable (3 m) with industrial plug. Cooling air supplied by a fan within the casing. Lockable with cylinder lock. Colour: Body RAL 7035 light grey, front face RAL 7016 anthracite powder-coated. Application: For optimum enclosure of the computer at the workplace. Protects from dirt and damage. Prevents unauthorised access. Note: Initial connections and subsequent connections of plugs or sockets to cables should only be performed by a qualified electrician. Height mm 500 92 7335 9GG 16G computer casing (eShop) Height mm 500 Width mm 400 Depth mm 650 Usable height mm 425 Interior detail with Usable width mm 350 multiple socket outlet and Usable depth mm 600 blower. 92 7335 Weight kg 19.7 155
