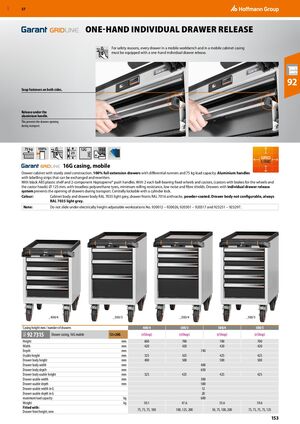

GBP 57 ONE-HAND INDIVIDUAL DRAWER RELEASE For safety reasons, every drawer in a mobile workbench and in a mobile cabinet casing must be equipped with a one-hand individual drawer release. 92 Snap fasteners on both sides. Release under the aluminium handle. This prevents the drawers opening during transport. 75 kg 100% 12G 25 20G 16G casing, mobile Drawer cabinet with sturdy steel construction. 100% full extension drawers with differential runners and 75 kg load capacity. Aluminium handles with labelling strips that can be exchanged and rewritten. With black ABS plastic shelf and 2-component Haptoprene® push handles. With 2 each ball-bearing fixed wheels and castors, (castors with brakes for the wheels and the castor heads) ⌀ 125 mm, with treadless polyurethane tyres, minimum rolling resistance, low noise and fibre shields. Drawers with individual drawer release system prevents the opening of drawers during transport. Centrally lockable with a cylinder lock. Colour: Cabinet body and drawer body RAL 7035 light grey, drawer fronts RAL 7016 anthracite, powder-coated. Drawer body not configurable, always RAL 7035 light grey. Note: Do not slide under electrically height-adjustable workstations No. 920012 – 920026, 920301 – 920317 and 923251 – 923297. _400/4 _500/3 _500/4 _500/5 Casing height mm / number of drawers 400/4 500/3 500/4 500/5 92 7315 9GG Drawer casing, 16G mobile 12×20G (eShop) (eShop) (eShop) (eShop) Height mm 600 700 700 700 Width mm 420 420 420 420 Depth mm 740 Usable height mm 325 425 425 425 Drawer body height mm 400 500 500 500 Drawer body width mm 400 Drawer body depth mm 650 Drawer body usable height mm 325 425 425 425 Drawer usable width mm 300 Drawer usable depth mm 500 Drawer usable width in G 12 Drawer usable depth in G 20 maximum load capacity kg 600 Weight kg 50.1 47.6 53.6 59.6 Fitted with: 75, 75, 75, 100 100, 125, 200 50, 75, 100, 200 75, 75, 75, 75, 125 Drawer front height, mm 153
