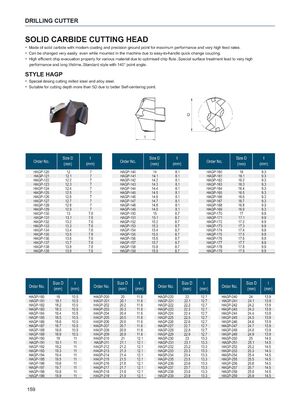

DRILLING CUTTER SOLID CARBIDE CUTTING HEAD • Made of solid carbide with modern coating and precision ground point for maximum performance and very high feed rates. • Can be changed very easily even while mounted in the machine due to easy-to-handle quick change coupling. • High efficient chip evacuation properly for various material due to optimised chip flute..Special surface treatment lead to very high performance and long lifetime..Standard style with 140° point angle. STYLE HAGP • Special desing cutting milled steel and alloy steel. • Suitable for cutting depth more than 5D due to better Self-centering point . D t Order No. Size D (mm) t (mm) Order No. HAGP-120 HAGP-121 HAGP-122 HAGP-123 HAGP-124 HAGP-125 HAGP-126 HAGP-127 HAGP-128 HAGP-129 HAGP-130 HAGP-131 HAGP-132 HAGP-133 HAGP-134 HAGP-135 HAGP-136 HAGP-137 HAGP-138 HAGP-139 12 12.1 12.2 12.3 12.4 12.5 12.6 12.7 12.8 12.9 13 13.1 13.2 13.3 13.4 13.5 13.6 13.7 13.8 13.9 7 7 7 7 7 7 7 7 7 7 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 HAGP-140 HAGP -141 HAGP-142 HAGP-143 HAGP-144 HAGP-145 HAGP-146 HAGP-147 HAGP-148 HAGP-149 HAGP-150 HAGP -151 HAGP-152 HAGP-153 HAGP-154 HAGP-155 HAGP-156 HAGP-157 HAGP-158 HAGP-159 Size D (mm) t (mm) 14 14.1 14.2 14.3 14.4 14.5 14.6 14.7 14.8 14.9 15 15.1 15.2 15.3 15.4 15.5 15.6 15.7 15.8 15.9 8.1 8.1 8.1 8.1 8.1 8.1 8.1 8.1 8.1 8.1 8.7 8.7 8.7 8.7 8.7 8.7 8.7 8.7 8.7 8.7 Order No . Size D (mm) (mm) HAGP-160 HAGP-161 HAGP-162 HAGP-163 HAGP -164 HAGP-165 HAGP-166 HAGP-167 HAGP-168 HAGP-169 HAGP-170 HAGP-171 HAGP-172 HAGP-173 HAGP-174 HAGP-175 HAGP-176 HAGP-177 HAGP-178 HAGP -179 16 16.1 16.2 16.3 16.4 16.5 16.6 16.7 16.8 16.9 17 17.1 17.2 17.3 17.4 17.5 17.6 17.7 17.8 17.9 9.3 9.3 9.3 9.3 9.3 9.3 9.3 9.3 9.3 9.3 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 t Order No. Size D (mm) t (mm) Order No. Size D (mm) t (mm) Order No. Size D (mm) t (mm) Order No. Size D (mm) (mm) HAGP-180 HAGP-181 HAGP-182 HAGP-183 HAGP-184 HAGP-185 HAGP-186 HAGP-187 HAGP-188 HAGP-189 HAGP-190 HAGP-191 HAGP-192 HAGP-193 HAGP-194 HAGP-195 HAGP-196 HAGP-197 HAGP-198 HAGP-199 18 18.1 18.2 18.3 18.4 18.5 18.6 18.7 18.8 18.9 19 19.1 19.2 19.3 19.4 19.5 19.6 19.7 19.8 19.9 10.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5 11 11 11 11 11 11 11 11 11 11 HAGP -200 HAGP -201 HAGP-202 HAGP -203 HAGP -204 HAGP -205 HAGP -206 HAGP -207 HAGP -208 HAGP -209 HAGP -210 HAGP -211 HAGP-212 HAGP-213 HAGP-214 HAGP -215 HAGP-216 HAGP-217 HAGP-218 HAGP-219 20 20.1 20.2 20.3 20.4 20.5 20.6 20.7 20.8 20.9 21 21.1 21.2 21.3 21.4 21.5 21.6 21.7 21.8 21.9 11.6 11.6 11.6 11.6 11.6 11.6 11.6 11.6 11.6 11.6 12.1 12.1 12.1 12.1 12.1 12.1 12.1 12.1 12.1 12.1 HAGP -220 HAGP -221 HAGP-222 HAGP -223 HAGP-224 HAGP-225 HAGP -226 HAGP -227 HAGP-228 HAGP -229 HAGP-230 HAGP-231 HAGP-232 HAGP-233 HAGP-234 HAGP -235 HAGP-236 HAGP-237 HAGP-238 HAGP-239 22 22.1 22.2 22.3 22.4 22.5 22.6 22.7 22.8 22.9 23 23.1 23.2 23.3 23.4 23.5 23.6 23.7 23.8 23.9 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7 13.3 13.3 13.3 13.3 13.3 13.3 13.3 13.3 13.3 13.3 HAGP -240 HAGP-241 HAGP -242 HAGP -243 HAGP -244 HAGP -245 HAGP -246 HAGP -247 HAGP -248 HAGP -249 HAGP -250 HAGP-251 HAGP -252 HAGP -253 HAGP -254 HAGP -255 HAGP-256 HAGP -257 HAGP -258 HAGP-259 24 24.1 24.2 24.3 24.4 24.5 24.6 24.7 24.8 24.9 25 25.1 25.2 25.3 25.4 25.5 25.6 25.7 25.8 25.9 13.9 13.9 13.9 13.9 13.9 13.9 13.9 13.9 13.9 13.9 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 159 t
