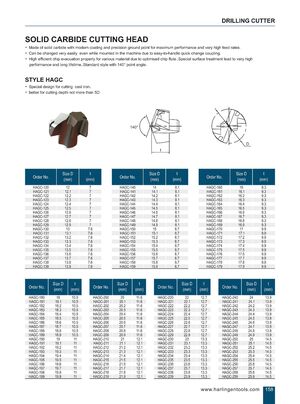

DRILLING CUTTER SOLID CARBIDE CUTTING HEAD • Made of solid carbide with modern coating and precision ground point for maximum performance and very high feed rates. • Can be changed very easily even while mounted in the machine due to easy-to-handle quick change coupling. • High efficient chip evacuation properly for various material due to optimised chip flute..Special surface treatment lead to very high performance and long lifetime..Standard style with 140° point angle. STYLE HAGC • Special design for cutting cast iron. • better for cutting depth not more than 5D 140° Order No. Size D (mm) t (mm) HAGC-120 HAGC-121 HAGC-122 HAGC-123 HAGC-124 HAGC-125 HAGC-126 HAGC-127 HAGC-128 HAGC-129 HAGC-130 HAGC-131 HAGC-132 HAGC-133 HAGC-134 HAGC-135 HAGC-136 HAGC-137 HAGC-138 HAGC - 139 12 12.1 12.2 12.3 12.4 12.5 12.6 12.7 12.8 12.9 13 13.1 13.2 13.3 13.4 13.5 13.6 13.7 13.8 13.9 7 7 7 7 7 7 7 7 7 7 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 Order No. Size D (mm) (mm) HAGC-180 HAGC-181 HAGC-182 HAGC-183 HAGC-184 HAGC -185 HAGC-186 HAGC-187 HAGC-188 HAGC-189 HAGC-190 HAGC-191 HAGC-192 HAGC-193 HAGC-194 HAGC -195 HAGC-196 HAGC-197 HAGC-198 HAGC -199 18 18.1 18.2 18.3 18.4 18.5 18.6 18.7 18.8 18.9 19 19.1 19.2 19.3 19.4 19.5 19.6 19.7 19.8 19.9 10.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5 11 11 11 11 11 11 11 11 11 11 t Order No. HAGC -200 HAGC -201 HAGC-202 HAGC -203 HAGC-204 HAGC -205 HAGC-206 HAGC -207 HAGC -208 HAGC -209 HAGC -210 HAGC -211 HAGC -212 HAGC -213 HAGC -214 HAGC -215 HAGC -216 HAGC -217 HAGC -218 HAGC -219 Order No. Size D (mm) t (mm) Order No . Size D (mm) t (mm) HAGC-140 HAGC-141 HAGC-142 HAGC-143 HAGC-144 HAGC-145 HAGC-146 HAGC-147 HAGC-148 HAGC-149 HAGC-150 HAGC-151 HAGC-152 HAGC-153 HAGC-154 HAGC-155 HAGC-156 HAGC-157 HAGC-158 HAGC- 159 14 14.1 14.2 14.3 14.4 14.5 14.6 14.7 14.8 14.9 15 15.1 15.2 15.3 15.4 15.5 15.6 15.7 15.8 15.9 8.1 8.1 8.1 8.1 8.1 8.1 8.1 8.1 8.1 8.1 8.7 8.7 8.7 8.7 8.7 8.7 8.7 8.7 8.7 8.7 HAGC-160 HAGC-161 HAGC-162 HAGC-163 HAGC-164 HAGC-165 HAGC-166 HAGC-167 HAGC-168 HAGC-169 HAGC-170 HAGC-171 HAGC-172 HAGC-173 HAGC-174 HAGC-175 HAGC-176 HAGC-177 HAGC-178 HAGC-179 16 16.1 16.2 16.3 16.4 16.5 16.6 16.7 16.8 16.9 17 17.1 17.2 17.3 17.4 17.5 17.6 17.7 17.8 17.9 9.3 9.3 9.3 9.3 9.3 9.3 9.3 9.3 9.3 9.3 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 Size D (mm) 20 20.1 20.2 20.3 20.4 20.5 20.6 20.7 20.8 20.9 21 21.1 21.2 21.3 21.4 21.5 21.6 21.7 21.8 21.9 t (mm) 11.6 11.6 11.6 11.6 11.6 11.6 11.6 11.6 11.6 11.6 12.1 12.1 12.1 12.1 12.1 12.1 12.1 12.1 12.1 12.1 Order No. Size D (mm) t (mm) Order No. Size D (mm) (mm) HAGC-220 HAGC-221 HAGC-222 HAGC-223 HAGC-224 HAGC-225 HAGC-226 HAGC-227 HAGC-228 HAGC-229 HAGC-230 HAGC-231 HAGC-232 HAGC-233 HAGC-234 HAGC-235 HAGC-236 HAGC-237 HAGC-238 HAGC-239 22 22.1 22.2 22.3 22.4 22.5 22.6 22.7 22.8 22.9 23 23.1 23.2 23.3 23.4 23.5 23.6 23.7 23.8 23.9 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7 13.3 13.3 13.3 13.3 13.3 13.3 13.3 13.3 13.3 13.3 HAGC-240 HAGC-241 HAGC-242 HAGC-243 HAGC-244 HAGC-245 HAGC-246 HAGC-247 HAGC-248 HAGC-249 HAGC-250 HAGC-251 HAGC-252 HAGC-253 HAGC-254 HAGC-255 HAGC-256 HAGC-257 HAGC-258 HAGC-259 24 24.1 24.2 24.3 24.4 24.5 24.6 24.7 24.8 24.9 25 25.1 25.2 25.3 25.4 25.5 25.6 25.7 25.8 25.9 13.9 13.9 13.9 13.9 13.9 13.9 13.9 13.9 13.9 13.9 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 www. harlingentools . com t 158
