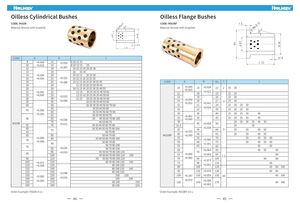

Безмасляные цилиндрические втулки
CODE: MSOB
Материал: бронза с графитом
| CODE | d | D | L |
|---|---|---|---|
| MSOB | 8 (+0.028/+0.013) | 12 (+0.018/0) | 8 10 12 15 |
| MSOB | 10 | 14 | 8 10 12 15 20 |
| MSOB | 12 | 18 (+0.007/0) | 10 12 15 16 20 25 30 |
| MSOB | 13 | 19 | 10 15 16 |
| MSOB | 14 (+0.034/+0.016) | 20 | 10 12 15 20 25 30 |
| MSOB | 15 | 21 (+0.021/+0.008) | 10 12 15 16 20 25 30 |
| MSOB | 16 | 22 | 10 12 15 16 20 25 30 35 40 |
| MSOB | 18 | 24 | 12 15 16 20 25 30 35 40 |
| MSOB | 20 | 28 | 10 12 15 16 20 25 30 35 40 50 |
| MSOB | 22 (+0.041/0.020) | 32 | 12 15 20 25 30 35 40 50 60 |
| MSOB | 25 | 33 | 12 15 16 20 25 30 35 40 50 60 |
| MSOB | 30 | 38 (+0.025/+0.009) | 12 15 20 25 30 35 40 50 60 |
| MSOB | 35 | 45 | 20 25 30 35 40 50 60 |
| MSOB | 40 | 50 | 20 25 30 35 40 50 60 70 80 |
| MSOB | 45 (+0.050/+0.025) | 55 | 30 35 40 50 60 |
| MSOB | 60 | 30 35 40 50 60 70 80 | |
| MSOB | 50 | 62 | 30 35 40 50 60 70 |
| MSOB | 65 (+0.030/+0.011) | 30 40 50 60 70 80 100 | |
| MSOB | 55 | 70 | 40 50 60 70 |
| MSOB | 60 | 70 | 30 35 40 50 60 70 80 |
| MSOB | 63 | 75 | 30 35 40 50 60 70 80 100 |
| MSOB | 65 | 80 | 60 70 80 |
| MSOB | 70 (+0.060/+0.030) | 85 | 50 60 70 80 |
| MSOB | 75 | 90 | 35 40 50 60 70 80 100 |
| MSOB | 95 (+0.035) | 50 60 70 80 | |
| MSOB | 80 | 96 (+0.013) | 60 70 80 100 |
| MSOB | 100 | 40 50 60 70 80 100 120 | |
| MSOB | 90 | 110 | 40 50 60 70 80 100 120 140 |
| MSOB | 100 (+0.071/+0.036) | 120 | 30 50 60 70 80 100 120 |
| MSOB | 110 | 130 | 60 70 80 100 120 140 |
| MSOB | 120 | 140 | 80 100 120 |
| MSOB | 125 | 145 | 80 100 120 140 |
| MSOB | 130 (+0.083/+0.040) | 150 | 80 100 120 |
| MSOB | 140 | 160 (+0.015) | 100 130 |
| MSOB | 150 (+0.043) | 170 | 100 140 |
| MSOB | 160 | 180 | 80 100 150 |
Пример заказа: MSOB-d x L
Безмасляные фланцевые втулки
CODE: MSOBF
Материал: бронза с графитом
| CODE | d | D | D1 | T | L |
|---|---|---|---|---|---|
| MSOBF | 10 (+0.040/+0.025) | 14 (+0.034/+0.023) | 22 | 2 | 15 20 |
| MSOBF | 12 | 18 | 25 | 2 | 15 20 |
| MSOBF | 13 | 19 | 26 | 2 | 15 20 |
| MSOBF | 14 (+0.050/+0.032) | 20 (+0.041/+0.028) | 27 | 3 | 15 20 |
| MSOBF | 15 | 21 | 28 | 3 | 15 20 25 30 |
| MSOBF | 16 | 22 | 29 | 3 | 15 20 25 30 |
| MSOBF | 20 | 30 | 40 | 3 | 15 20 25 30 40 |
| MSOBF | 25 (+0.061/+0.040) | 35 | 45 | 3 | 15 20 25 30 40 |
| MSOBF | 30 | 40 (+0.050/+0.034) | 50 | 5 | 20 25 30 35 40 50 |
| MSOBF | 31.5 | 5 | 20 35 | ||
| MSOBF | 35 (+0.075/+0.050) | 45 | 60 | 5 | 20 30 40 50 |
| MSOBF | 40 | 50 | 65 | 20 30 40 50 | |
| MSOBF | 45 | 55 | 70 | 30 40 50 60 | |
| MSOBF | 50 | 60 (+0.060/+0.041) | 75 | 30 40 50 60 | |
| MSOBF | 55 | 65 | 80 | 40 60 | |
| MSOBF | 60 | 75 (+0.062/+0.043) | 90 | 7.5 | 40 50 80 |
| MSOBF | 63 (+0.090/+0.060) | 85 | 80 | ||
| MSOBF | 70 | 85 (+0.073/+0.051) | 105 | 50 80 | |
| MSOBF | 75 | 90 | 110 | 60 | |
| MSOBF | 80 | 100 | 120 | 60 80 100 | |
| MSOBF | 90 | 110 (+0.076/+0.054) | 130 | 10 | 60 80 |
| MSOBF | 100 (+0.107/+0.072) | 120 (+0.088/+0.063) | 150 | 80 100 | |
| MSOBF | 120 | 140 | 170 | 80 100 |
Пример заказа: MSOBF-d x L
