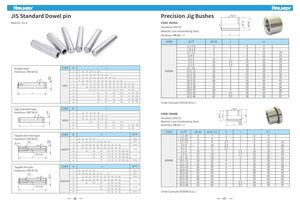

Штифты по стандарту JIS
Материал: SUJ2
Прямой тип
Твердость: HRC58-62
| CODE | D | L | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SMS | 3 | 8, 10, 15, 20, 25, 30 | |||||||||||
| 4 | 8, 10, 15, 20, 25, 30, 35, 40 | ||||||||||||
| 5 | 8, 10, 15, 20, 25, 30, 35, 40, 45, 50 | ||||||||||||
| 6 | 8, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 | ||||||||||||
| 8 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80 | ||||||||||||
| 10 | 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80 | ||||||||||||
| 12 | 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80 | ||||||||||||
| 13 | 30, 40, 50, 60, 70, 80, 100 | ||||||||||||
| 16, 20, 25 | 30, 40, 50, 60, 70, 80, 100 | ||||||||||||
Высокоточный тип
Твердость: HRC58-62
| CODE | D | L | |||||||
|---|---|---|---|---|---|---|---|---|---|
| SMSV | 4 | 10, 15, 20, 25, 30 | |||||||
| 5 | 10, 15, 20, 25, 30, 35, 40 | ||||||||
| 6 | 10, 15, 20, 25, 30, 35, 40 | ||||||||
| 8 | 20, 30, 40, 50, 60 | ||||||||
| 10, 12 | 30, 40, 50, 60, 70, 80, 100 | ||||||||
Прецизионный тип с резьбой
Твердость: HRC58-62
| CODE | D | L | M*P |
|---|---|---|---|
| SMSTP | 5 | 10, 15, 20, 25, 30 | 3*0.5 |
| 6 | 10, 15, 20, 25, 30, 35, 40, 45, 50 | 4*0.7 | |
| 8, 10 | 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80 | 5*0.8 | |
| 12, 13, 16 | 20/30, 40, 50, 60, 70, 80, 100, 120 | 6*1.0 | |
| 20 | 40, 50, 60, 70, 80, 100, 120 | 8*1.25 | |
| 10*1.5 |
С отверстием для выхода воздуха.
Тип с резьбой m6
Твердость: HRC45-50
| CODE | D | L | M*P |
|---|---|---|---|
| SMSTM | 5 | 10, 15, 20, 25, 30 | 3*0.5 |
| 6 | 10, 15, 20, 25, 30, 35, 40, 50 | 4*0.7 | |
| 8, 10 | 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80 | 5*0.8 | |
| 12, 13, 16 | 20/30, 40, 50, 60, 70, 80 | 6*1.0 | |
| 20 | 50, 60, 70, 80 | 8*1.25 / 10*1.5 |
С отверстием для выхода воздуха.
Прецизионные направляющие втулки (кондукторные)
CODE: MZ65A
Стандарт: DIN179
Материал: цементируемая сталь
Твердость: HRC60+/-2
| CODE | d1 F7 | d2 n6 | r | L1 | ||
|---|---|---|---|---|---|---|
| MZ65A | 1.1-1.8 | 4 | 1 | 6, 9 | ||
| 1.9-2.6 | 5 | 1 | 6, 9 | |||
| 2.7-3.3 | 6 | 1 | 8, 12, 16 | |||
| 3.4-4 | 7 | 1 | 8, 12, 16 | |||
| 4.1-5 | 8 | 1 | 8, 12, 16 | |||
| 5.1-6 | 10 | 1.5 | 10, 16, 20 | |||
| 6.1-8 | 12 | 1.5 | 10, 16, 20 | |||
| 8.1-10 | 15 | 2 | 12, 20, 25 | |||
| 10.1-12 | 18 | 2 | 12, 20, 25 | |||
| 12.1-15 | 22 | 2 | 16, 28, 36 | |||
| 15.5-18 | 26 | 2 | 16, 28, 36 | |||
| 18.5-22 | 30 | 3 | 20, 36, 45 | |||
| 22.5-26 | 35 | 3 | 20, 36, 45 | |||
| 26.5-30 | 42 | 3 | 25, 45, 56 | |||
| 30.5-35 | 48 | 3 | 25, 45, 56 | |||
| 35.5-42 | 55 | 3.5 | 30, 56, 67 | |||
| 42.5-48 | 62 | 3.5 | 30, 56, 67 | |||
Пример заказа: MZ65A-d1xL1
Прецизионные направляющие втулки (кондукторные) с буртиком
CODE: MZ66B
Стандарт: DIN172
Материал: цементируемая сталь
Твердость: HRC60+/-2
| CODE | d1 F7 | d2 n6 | d3 0/-0.2 | K | r | L1 |
|---|---|---|---|---|---|---|
| MZ66B | 1.1-18 | 4 | 7 | 2 | 1 | 6, 9 |
| 1.9-2.6 | 5 | 8 | 2 | 1 | 6, 9 | |
| 2.7-3.3 | 6 | 9 | 2.5 | 1 | 8, 12, 16 | |
| 3.4-4 | 7 | 10 | 2.5 | 1 | 8, 12, 16 | |
| 4.1-5 | 8 | 11 | 2.5 | 1 | 8, 12, 16 | |
| 5.1-6 | 10 | 13 | 3 | 1.5 | 10, 16, 20 | |
| 6.1-8 | 12 | 15 | 3 | 1.5 | 10, 16, 20 | |
| 8.1-10 | 15 | 18 | 3 | 2 | 12, 20, 25 | |
| 10.1-12 | 18 | 22 | 4 | 2 | 12, 20, 25 | |
| 12.1-15 | 22 | 26 | 4 | 2 | 16, 28, 36 | |
| 15.5-18 | 26 | 30 | 4 | 2 | 16, 28, 36 | |
| 18.5-22 | 30 | 34 | 5 | 3 | 20, 36, 45 | |
| 22.5-26 | 35 | 39 | 5 | 3 | 20, 36, 45 | |
| 26.5-30 | 42 | 46 | 5 | 3 | 25, 45, 56 | |
| 30.5-35 | 48 | 52 | 5 | 3 | 25, 45, 56 | |
| 35.5-42 | 55 | 59 | 5 | 3.5 | 30, 56, 67 | |
| 42.5-48 | 62 | 66 | 6 | 3.5 | 30, 56, 67 |
Пример заказа: MZ66B-d1xL1
