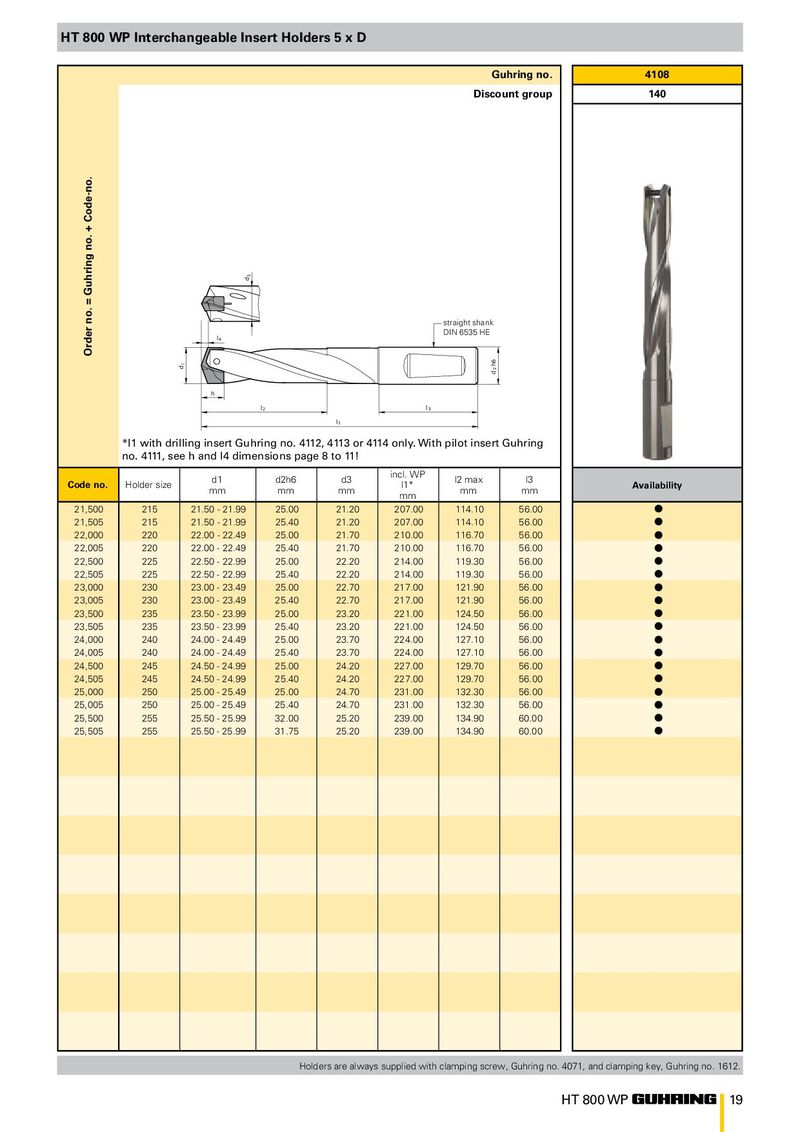

Каталог Guhring сверла со сменными пластинами

						Gu Discou	hring no. nt group	4108 140
Order no. = Guhring no. + Code-no.	l1 with dri no. 4111, se	h d1 d3 l4 lling insert Guhr e h and l4 dimen	l2 ing no. 411 sions page	l1 2, 4113 or 41 8 to 11!	l3 14 only. With il WP	d2h6 Zylinderschaft DIN 6535-HE pilot insert G straight shank DIN 6535 HE	uhring
Code no.	Holder size	d1 mm	d2h6 mm	d3 mm	nc. l1 mm	l2 max mm	l3 mm	Availability
21,500	215	21.50 - 21.99	25.00	21.20	207.00	114.10	56.00	l
21,505	215	21.50 - 21.99	25.40	21.20	207.00	114.10	56.00	l
22,000	220	22.00 - 22.49	25.00	21.70	210.00	116.70	56.00	l
22,005	220	22.00 - 22.49	25.40	21.70	210.00	116.70	56.00	l
22,500	225	22.50 - 22.99	25.00	22.20	214.00	119.30	56.00	l
22,505	225	22.50 - 22.99	25.40	22.20	214.00	119.30	56.00	l
23,000	230	23.00 - 23.49	25.00	22.70	217.00	121.90	56.00	l
23,005	230	23.00 - 23.49	25.40	22.70	217.00	121.90	56.00	l
23,500	235	23.50 - 23.99	25.00	23.20	221.00	124.50	56.00	l
23,505	235	23.50 - 23.99	25.40	23.20	221.00	124.50	56.00	l
24,000	240	24.00 - 24.49	25.00	23.70	224.00	127.10	56.00	l
24,005	240	24.00 - 24.49	25.40	23.70	224.00	127.10	56.00	l
24,500	245	24.50 - 24.99	25.00	24.20	227.00	129.70	56.00	l
24,505	245	24.50 - 24.99	25.40	24.20	227.00	129.70	56.00	l
25,000	250	25.00 - 25.49	25.00	24.70	231.00	132.30	56.00	l
25,005	250	25.00 - 25.49	25.40	24.70	231.00	132.30	56.00	l
25,500	255	25.50 - 25.99	32.00	25.20	239.00	134.90	60.00	l
25,505	255	25.50 - 25.99	31.75	25.20	239.00	134.90	60.00	l
