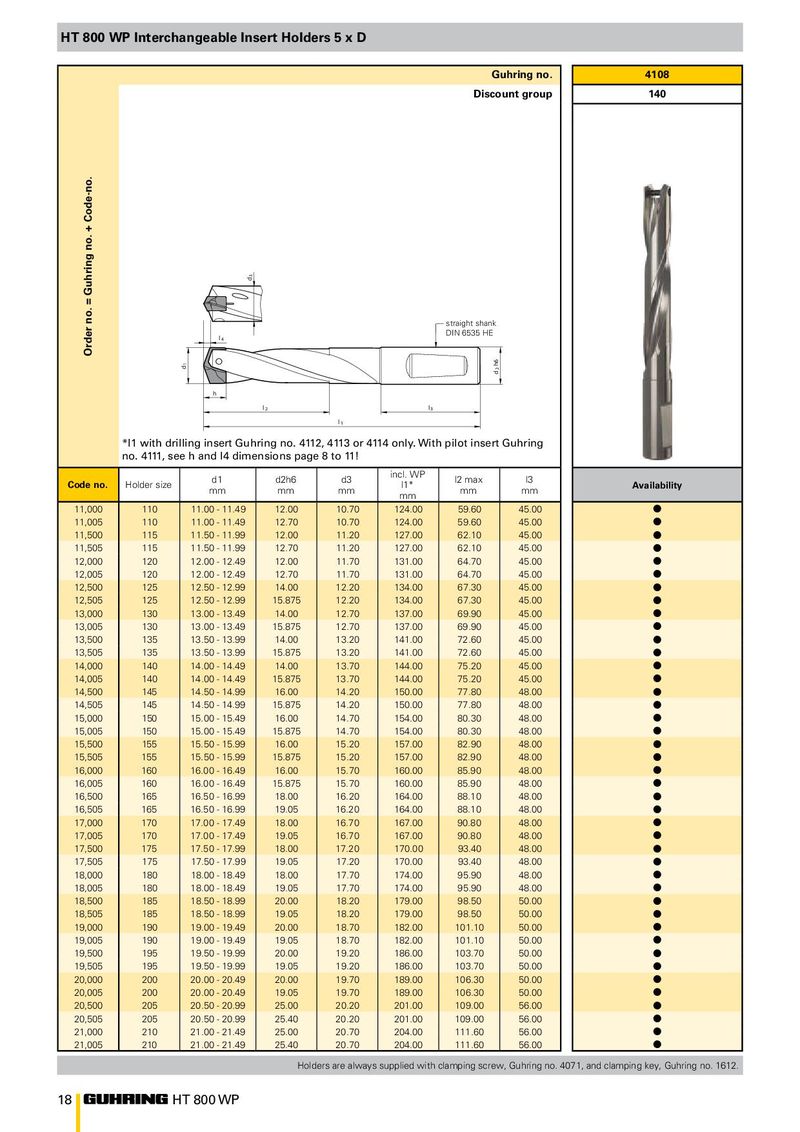

| Order no. = Guhring no. + Code-no. | | d3 l4 | | | | Zylinderschaft DIN 6535-HE G Disco straight shank DIN 6535 HE | uhring no. unt group | 4108 140 |
| | d1 | | | | d2h6 | | |
| l1 with dr no. 4111, s | h illing insert Guhri ee h and l4 dimen | l2 ng no. 411 sions page | l1 2, 4113 or 4 8 to 11! | l3 114 only. Wit | h pilot insert | Guhring | |
| Code no. | Holder size | d1 mm | d2h6 mm | d3 mm | incl. WP l1 mm | l2 max mm | l3 mm | Availability |
| 11,000 11005 | 110 110 | 11.00 - 11.49 11.00 - 11.49 | 12.00 12.70 | 10.70 10.70 | 124.00 124.00 | 59.60 59.60 | 45.00 45.00 | l l |
| , 11,500 | 115 | 11.50 - 11.99 | 12.00 | 11.20 | 127.00 | 62.10 | 45.00 | l |
| 11,505 12,000 | 115 120 | 11.50 - 11.99 12.00 - 12.49 | 12.70 12.00 | 11.20 11.70 | 127.00 131.00 | 62.10 64.70 | 45.00 45.00 | l l |
| 12,005 | 120 | 12.00 - 12.49 | 12.70 | 11.70 | 131.00 | 64.70 | 45.00 | l |
| 12,500 12,505 | 125 125 | 12.50 - 12.99 12.50 - 12.99 | 14.00 15.875 | 12.20 12.20 | 134.00 134.00 | 67.30 67.30 | 45.00 45.00 | l l |
| 13,000 | 130 | 13.00 - 13.49 | 14.00 | 12.70 | 137.00 | 69.90 | 45.00 | l |
| 13,005 | 130 | 13.00 - 13.49 | 15.875 | 12.70 | 137.00 | 69.90 | 45.00 | l |
| 13,500 13,505 | 135 135 | 13.50 - 13.99 13.50 - 13.99 | 14.00 15.875 | 13.20 13.20 | 141.00 141.00 | 72.60 72.60 | 45.00 45.00 | l l |
| 14,000 | 140 | 14.00 - 14.49 | 14.00 | 13.70 | 144.00 | 75.20 | 45.00 | l |
| 14,005 | 140 | 14.00 - 14.49 | 15.875 | 13.70 | 144.00 | 75.20 | 45.00 | l |
| 14,500 | 145 | 14.50 - 14.99 | 16.00 | 14.20 | 150.00 | 77.80 | 48.00 | l |
| 14,505 | 145 | 14.50 - 14.99 | 15.875 | 14.20 | 150.00 | 77.80 | 48.00 | l |
| 15,000 | 150 | 15.00 - 15.49 | 16.00 | 14.70 | 154.00 | 80.30 | 48.00 | l |
| 15,005 15500 | 150 155 | 15.00 - 15.49 15.50 - 15.99 | 15.875 16.00 | 14.70 15.20 | 154.00 157.00 | 80.30 82.90 | 48.00 48.00 | l l |
| , 10 | 1 | 10 199 | 187 | 120 | 1700 | 8290 | 4800 | l |
| 5,55 | 55 | 5.5 - 5. | 5.5 | 5. | 5. | . | . | |
| 16,000 16,005 | 160 160 | 16.00 - 16.49 16.00 - 16.49 | 16.00 15.875 | 15.70 15.70 | 160.00 160.00 | 85.90 85.90 | 48.00 48.00 | l l |
| 16,500 | 165 | 16.50 - 16.99 | 18.00 | 16.20 | 164.00 | 88.10 | 48.00 | l |
| 16,505 17,000 | 165 170 | 16.50 - 16.99 17.00 - 17.49 | 19.05 18.00 | 16.20 16.70 | 164.00 167.00 | 88.10 90.80 | 48.00 48.00 | l l |
| 17005 | 170 | 17.00 - 17.49 | 19.05 | 16.70 | 167.00 | 90.80 | 48.00 | l |
| , 17500 | 175 | 1750 1799 | 1800 | 1720 | 17000 | 9340 | 4800 | l |
| , 17,505 18,000 | 175 180 | . - . 17.50 - 17.99 18.00 - 18.49 | . 19.05 18.00 | . 17.20 17.70 | . 170.00 174.00 | . 93.40 95.90 | . 48.00 48.00 | l l |
| 18,005 | 180 | 18.00 - 18.49 | 19.05 | 17.70 | 174.00 | 95.90 | 48.00 | l |
| 18,500 18,505 | 185 185 | 18.50 - 18.99 18.50 - 18.99 | 20.00 19.05 | 18.20 18.20 | 179.00 179.00 | 98.50 98.50 | 50.00 50.00 | l l |
| 19,000 | 190 | 19.00 - 19.49 | 20.00 | 18.70 | 182.00 | 101.10 | 50.00 | l |
| 19,005 | 190 | 19.00 - 19.49 | 19.05 | 18.70 | 182.00 | 101.10 | 50.00 | l |
| 19,500 19,505 | 195 195 | 19.50 - 19.99 19.50 - 19.99 | 20.00 19.05 | 19.20 19.20 | 186.00 186.00 | 103.70 103.70 | 50.00 50.00 | l l |
| 20,000 | 200 | 20.00 - 20.49 | 20.00 | 19.70 | 189.00 | 106.30 | 50.00 | l |
| 20,005 | 200 | 20.00 - 20.49 | 19.05 | 19.70 | 189.00 | 106.30 | 50.00 | l |
| 20,500 | 205 | 20.50 - 20.99 | 25.00 | 20.20 | 201.00 | 109.00 | 56.00 | l |
| 20,505 | 205 | 20.50 - 20.99 | 25.40 | 20.20 | 201.00 | 109.00 | 56.00 | l |
| 21,000 21,005 | 210 210 | 21.00 - 21.49 21.00 - 21.49 | 25.00 25.40 | 20.70 20.70 | 204.00 204.00 | 111.60 111.60 | 56.00 56.00 | l l |
| | | Hold | ers are alway | s supplied with | clamping screw | , Guhring no. 4071, a | nd clamping key, Guhring no. 1612. |
