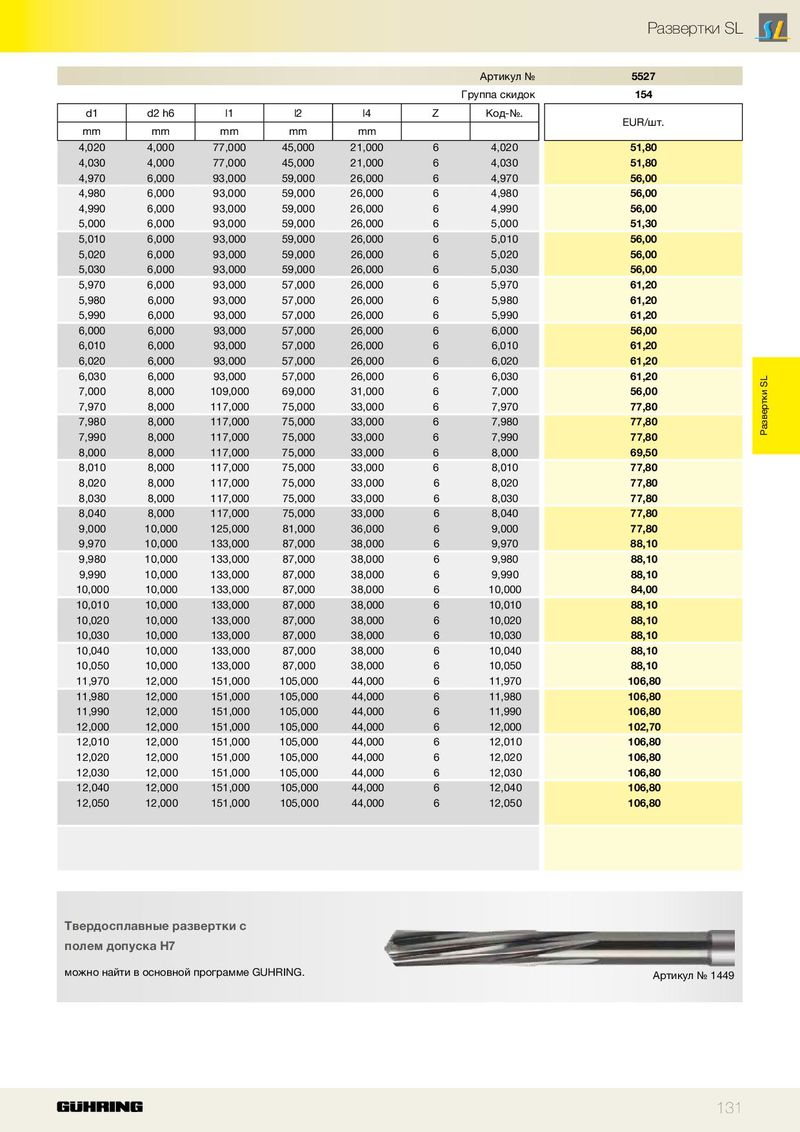

Каталог Guhring высокопроизводительный инструмент по отличной цене SuperLine - страница 131
Навигация
Каталог Guhring пластины PKD и CBN
Каталог Guhring специализированные сверла для труднообрабатываемых материалов RF 100 HF
Каталог Guhring программа фрез высочайшего качества PowerMill
Каталог Guhring фрезерный инструмент
Каталог Guhring инструментальная оснастка
Каталог Guhring сверла со сменными пластинами
| Артикул № Группа скидок | 5527 154 | ||||||
| d1 | d2 h6 | l1 | l2 | l4 | Z | Код-№. | |
| mm | mm | mm | mm | mm | EUR/шт. | ||
| 4,020 | 4,000 | 77,000 | 45,000 | 21,000 | 6 | 4,020 | 51,80 |
| 4,030 | 4,000 | 77,000 | 45,000 | 21,000 | 6 | 4,030 | 51,80 |
| 4,970 | 6,000 | 93,000 | 59,000 | 26,000 | 6 | 4,970 | 56,00 |
| 4,980 | 6,000 | 93,000 | 59,000 | 26,000 | 6 | 4,980 | 56,00 |
| 4,990 | 6,000 | 93,000 | 59,000 | 26,000 | 6 | 4,990 | 56,00 |
| 5,000 | 6,000 | 93,000 | 59,000 | 26,000 | 6 | 5,000 | 51,30 |
| 5,010 | 6,000 | 93,000 | 59,000 | 26,000 | 6 | 5,010 | 56,00 |
| 5,020 | 6,000 | 93,000 | 59,000 | 26,000 | 6 | 5,020 | 56,00 |
| 5,030 | 6,000 | 93,000 | 59,000 | 26,000 | 6 | 5,030 | 56,00 |
| 5,970 | 6,000 | 93,000 | 57,000 | 26,000 | 6 | 5,970 | 61,20 |
| 5,980 | 6,000 | 93,000 | 57,000 | 26,000 | 6 | 5,980 | 61,20 |
| 5,990 | 6,000 | 93,000 | 57,000 | 26,000 | 6 | 5,990 | 61,20 |
| 6,000 | 6,000 | 93,000 | 57,000 | 26,000 | 6 | 6,000 | 56,00 |
| 6,010 | 6,000 | 93,000 | 57,000 | 26,000 | 6 | 6,010 | 61,20 |
| 6,020 | 6,000 | 93,000 | 57,000 | 26,000 | 6 | 6,020 | 61,20 |
| 6,030 | 6,000 | 93,000 | 57,000 | 26,000 | 6 | 6,030 | 61,20 |
| 7,000 | 8,000 | 109,000 | 69,000 | 31,000 | 6 | 7,000 | 56,00 |
| 7,970 | 8,000 | 117,000 | 75,000 | 33,000 | 6 | 7,970 | 77,80 |
| 7,980 | 8,000 | 117,000 | 75,000 | 33,000 | 6 | 7,980 | 77,80 |
| 7,990 | 8,000 | 117,000 | 75,000 | 33,000 | 6 | 7,990 | 77,80 |
| 8,000 | 8,000 | 117,000 | 75,000 | 33,000 | 6 | 8,000 | 69,50 |
| 8,010 | 8,000 | 117,000 | 75,000 | 33,000 | 6 | 8,010 | 77,80 |
| 8,020 | 8,000 | 117,000 | 75,000 | 33,000 | 6 | 8,020 | 77,80 |
| 8,030 | 8,000 | 117,000 | 75,000 | 33,000 | 6 | 8,030 | 77,80 |
| 8,040 | 8,000 | 117,000 | 75,000 | 33,000 | 6 | 8,040 | 77,80 |
| 9,000 | 10,000 | 125,000 | 81,000 | 36,000 | 6 | 9,000 | 77,80 |
| 9,970 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 9,970 | 88,10 |
| 9,980 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 9,980 | 88,10 |
| 9,990 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 9,990 | 88,10 |
| 10,000 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 10,000 | 84,00 |
| 10,010 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 10,010 | 88,10 |
| 10,020 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 10,020 | 88,10 |
| 10,030 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 10,030 | 88,10 |
| 10,040 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 10,040 | 88,10 |
| 10,050 | 10,000 | 133,000 | 87,000 | 38,000 | 6 | 10,050 | 88,10 |
| 11,970 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 11,970 | 106,80 |
| 11,980 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 11,980 | 106,80 |
| 11,990 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 11,990 | 106,80 |
| 12,000 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 12,000 | 102,70 |
| 12,010 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 12,010 | 106,80 |
| 12,020 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 12,020 | 106,80 |
| 12,030 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 12,030 | 106,80 |
| 12,040 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 12,040 | 106,80 |
| 12,050 | 12,000 | 151,000 | 105,000 | 44,000 | 6 | 12,050 | 106,80 |
| Твердосп | лавные раз | вертки с | |||||
| полем доп | уска H7 | ||||||
| можно найт | и в основной | программе GU | HRING. | Артикул № 1449 |
