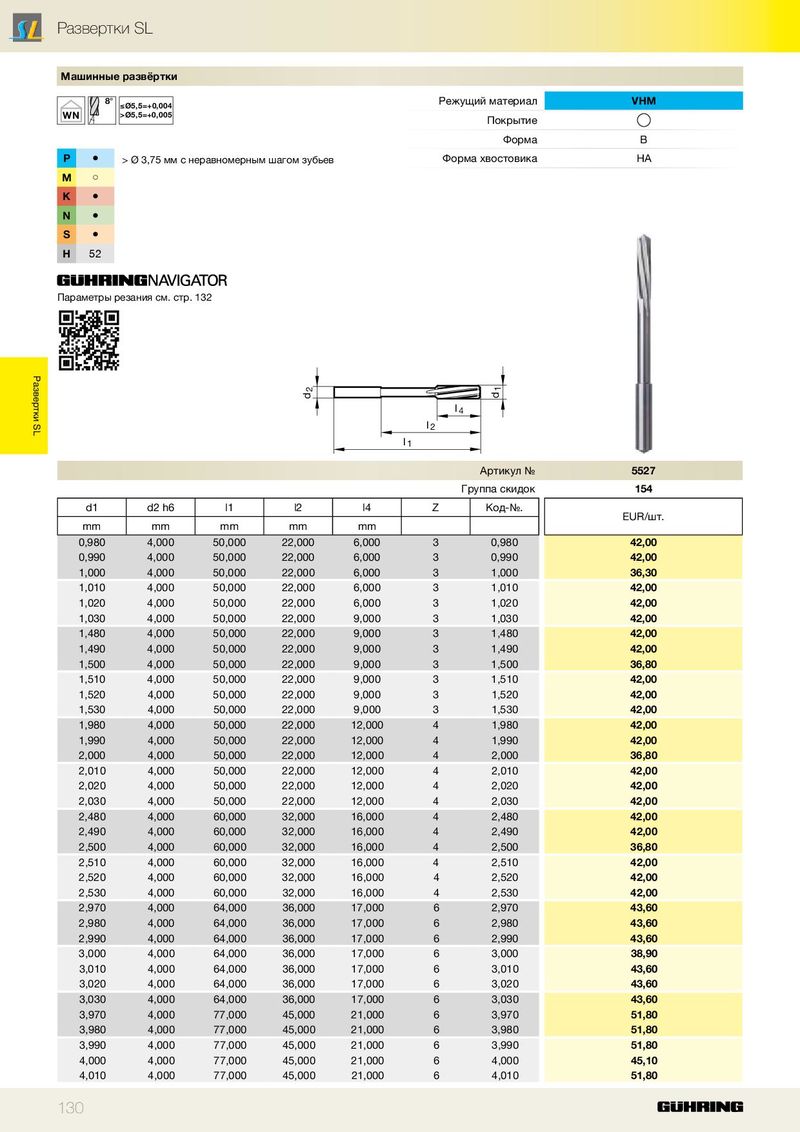

Машинные развёртки
| 8° | Режущий материал | VHM | |
| ≤Ø5,5=+0,004 |
| WN | >Ø5,5=+0,005 | Покрытие | |
| Форма B | |||
| P | ● | > Ø 3,75 мм с неравномерным шагом зубьев | Форма хвостовика HA |
| M | ○ | ||
| K | ● | ||
| N | ● | ||
| S | ● | ||
| H | 52 |
Параметры резания см. стр. 132
l 4 l2 l1
| Артикул № | 5527 | ||||||
| Группа скидок | 154 | ||||||
| d1 | d2 h6 | l1 | l2 | l4 | Z | Код-№. | EUR/шт |
| mm | mm | mm | mm | mm | . | ||
| 0,980 | 4,000 | 50,000 | 22,000 | 6,000 | 3 | 0,980 | 42,00 |
| 0,990 | 4,000 | 50,000 | 22,000 | 6,000 | 3 | 0,990 | 42,00 |
| 1,000 | 4,000 | 50,000 | 22,000 | 6,000 | 3 | 1,000 | 36,30 |
| 1,010 | 4,000 | 50,000 | 22,000 | 6,000 | 3 | 1,010 | 42,00 |
| 1,020 | 4,000 | 50,000 | 22,000 | 6,000 | 3 | 1,020 | 42,00 |
| 1,030 | 4,000 | 50,000 | 22,000 | 9,000 | 3 | 1,030 | 42,00 |
| 1,480 | 4,000 | 50,000 | 22,000 | 9,000 | 3 | 1,480 | 42,00 |
| 1,490 | 4,000 | 50,000 | 22,000 | 9,000 | 3 | 1,490 | 42,00 |
| 1,500 | 4,000 | 50,000 | 22,000 | 9,000 | 3 | 1,500 | 36,80 |
| 1,510 | 4,000 | 50,000 | 22,000 | 9,000 | 3 | 1,510 | 42,00 |
| 1,520 | 4,000 | 50,000 | 22,000 | 9,000 | 3 | 1,520 | 42,00 |
| 1,530 | 4,000 | 50,000 | 22,000 | 9,000 | 3 | 1,530 | 42,00 |
| 1,980 | 4,000 | 50,000 | 22,000 | 12,000 | 4 | 1,980 | 42,00 |
| 1,990 | 4,000 | 50,000 | 22,000 | 12,000 | 4 | 1,990 | 42,00 |
| 2,000 | 4,000 | 50,000 | 22,000 | 12,000 | 4 | 2,000 | 36,80 |
| 2,010 | 4,000 | 50,000 | 22,000 | 12,000 | 4 | 2,010 | 42,00 |
| 2,020 | 4,000 | 50,000 | 22,000 | 12,000 | 4 | 2,020 | 42,00 |
| 2,030 | 4,000 | 50,000 | 22,000 | 12,000 | 4 | 2,030 | 42,00 |
| 2,480 | 4,000 | 60,000 | 32,000 | 16,000 | 4 | 2,480 | 42,00 |
| 2,490 | 4,000 | 60,000 | 32,000 | 16,000 | 4 | 2,490 | 42,00 |
| 2,500 | 4,000 | 60,000 | 32,000 | 16,000 | 4 | 2,500 | 36,80 |
| 2,510 | 4,000 | 60,000 | 32,000 | 16,000 | 4 | 2,510 | 42,00 |
| 2,520 | 4,000 | 60,000 | 32,000 | 16,000 | 4 | 2,520 | 42,00 |
| 2,530 | 4,000 | 60,000 | 32,000 | 16,000 | 4 | 2,530 | 42,00 |
| 2,970 | 4,000 | 64,000 | 36,000 | 17,000 | 6 | 2,970 | 43,60 |
| 2,980 | 4,000 | 64,000 | 36,000 | 17,000 | 6 | 2,980 | 43,60 |
| 2,990 | 4,000 | 64,000 | 36,000 | 17,000 | 6 | 2,990 | 43,60 |
| 3,000 | 4,000 | 64,000 | 36,000 | 17,000 | 6 | 3,000 | 38,90 |
| 3,010 | 4,000 | 64,000 | 36,000 | 17,000 | 6 | 3,010 | 43,60 |
| 3,020 | 4,000 | 64,000 | 36,000 | 17,000 | 6 | 3,020 | 43,60 |
| 3,030 | 4,000 | 64,000 | 36,000 | 17,000 | 6 | 3,030 | 43,60 |
| 3,970 | 4,000 | 77,000 | 45,000 | 21,000 | 6 | 3,970 | 51,80 |
| 3,980 | 4,000 | 77,000 | 45,000 | 21,000 | 6 | 3,980 | 51,80 |
| 3,990 | 4,000 | 77,000 | 45,000 | 21,000 | 6 | 3,990 | 51,80 |
| 4,000 | 4,000 | 77,000 | 45,000 | 21,000 | 6 | 4,000 | 45,10 |
| 4,010 | 4,000 | 77,000 | 45,000 | 21,000 | 6 | 4,010 | 51,80 |
