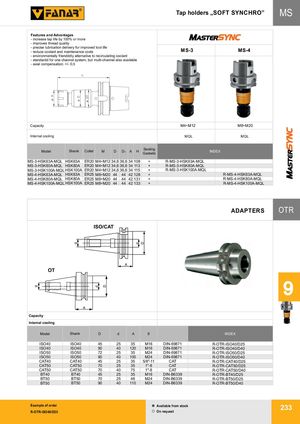

Общий каталог FANAR 2021 - страница 236

g g d D d D MASTERSYNC MS Tap holders „SOFT SYNCHRO” MS Features and Advantages- increase tap life by 100% or more MASTERSYNC - improves thread quality - precise lubrication delivery for improved tool life - reduce coolant and maintenance costs MS-3 MS-4 - environmentally friendddly alternative to recirculating coolant - standardd for one channel system, but multi-channel also available - axial compensation: +/- 0,5 Capacity M4÷M12 M8÷M20 Internal cooling MQL MQL Model Shank Collet M SealingDDDAHHGaskets INDEX MS-3-HSK63A-MQL HSK63A ER20 M4÷M12 34,6 36,6 34 108 + R-MS-3-HSK63A-MQL MS-3-HSK80A-MQL HSK80A ER20 M4÷M12 34,6 36,6 34 113 + R-MS-3-HSK80A-MQL MS-3-HSK100A-MQL HSK100A ER20 M4÷M12 34,6 36,6 34 115 + R-MS-3-HSK100A-MQL MS-4-HSK63A-MQL HSK63A ER25 M8÷M20 44 44 42 128 + R-MS-4-HSK63A-MQL MS-4-HSK80A-MQL HSK80A ER25 M8÷M20 44 44 42 131 + R-MS-4-HSK80A-MQL MS-4-HSK100A-MQL HSK100A ER25 M8÷M20 44 44 42 133 + R-MS-4-HSK100A-MQL ADAPTERS OTR ISO/CAT A OT 9 A Capacity Internal cooling Model Shank D dD A AH g INDEX ISO40 ISO40 45 25 35 M16 DIN-69871 R-OTR-ISO40/D25 ISO40 ISO40 90 40 120 M16 DIN-69871 R-OTR-ISO40/D40 ISO50 ISO50 72 25 35 M24 DIN-69871 R-OTR-ISO50/D25 ISO50 ISO50 90 40 100 M24 DIN-69871 R-OTR-ISO50/D40 CAT40 CAT40 45 25 35 5/8"-11 CAT R-OTR-CAT40/D25 CAT50 CAT50 70 25 35 1"-8 CAT R-OTR-CAT50/D25 CAT50 CAT50 70 40 75 1"-8 CAT R-OTR-CAT50/D40 BT40 BT40 45 25 35 M16 DIN-B6339 R-OTR-BT40/D25 BT50 BT50 70 25 48 M24 DIN-B6339 R-OTR-BT50/D25 BT50 BT50 90 40 110 M24 DIN-B6339 R-OTR-BT50/D40 Example of order Available from stock 233 R-OTR-ISO40/D25 On request 8
