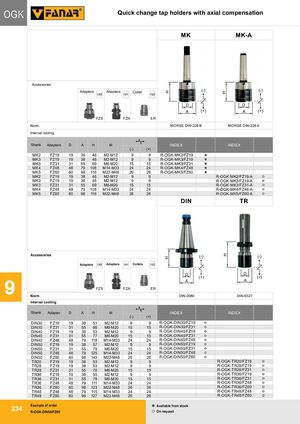

Общий каталог FANAR 2021 - страница 237

HH HH OGK Quick change tap holders with axial compensation OGK MK MK-A Accessories Adapters Adapters Collet (-) (-) 188 191 192 D D A (+) A (+) FZS FZA ER Norm MORSE DIN-228 B MORSE DIN-228 A Internal cooling Shank Adapters D A H M INDEX INDEX (-) (+) MK2 FZ19 19 38 46 M2-M12 9 9 R-OGK-MK2/FZ19 MK3 FZ19 19 38 46 M2-M12 9 9 R-OGK-MK3/FZ19 MK3 FZ31 31 55 69 M6-M20 15 15 R-OGK-MK3/FZ31 MK4 FZ48 48 79 108 M14-M33 24 24 R-OGK-MK4/FZ48 MK5 FZ60 60 98 116 M22-M48 26 26 R-OGK-MK5/FZ60 MK2 FZ19 19 38 46 M2-M12 9 9 R-OGK-MK2/FZ19-A MK3 FZ19 19 38 46 M2-M12 9 9 R-OGK-MK3/FZ19-A MK3 FZ31 31 55 69 M6-M20 15 15 R-OGK-MK3/FZ31-A MK4 FZ48 48 79 108 M14-M33 24 24 R-OGK-MK4/FZ48-A MK5 FZ60 60 98 116 M22-M48 26 26 R-OGK-MK5/FZ60-A DIN TR Accessories (-) (-) Adapters 188 Adapters 191 Collets 192 D D (+) (+) A A 9 FZS FZA ER Norm DIN-2080 DIN-6327 Internal cooling Shank Adapter D A H M INDEX INDEX (-) (+) DIN30 FZ19 19 38 51 M2-M12 9 9 R-OGK-DIN30/FZ19 DIN30 FZ31 31 55 86 M6-M20 15 15 R-OGK-DIN30/FZ31 DIN40 FZ19 19 38 53 M2-M12 9 9 R-OGK-DIN40/FZ19 DIN40 FZ31 31 55 77 M6-M20 15 15 R-OGK-DIN40/FZ31 DIN40 FZ48 48 79 118 M14-M33 24 24 R-OGK-DIN40/FZ48 DIN50 FZ19 19 38 57 M2-M12 9 9 R-OGK-DIN50/FZ19 DIN50 FZ31 31 55 79 M6-M20 15 15 R-OGK-DIN50/FZ31 DIN50 FZ48 48 79 125 M14-M33 24 24 R-OGK-DIN50/FZ48 DIN50 FZ60 60 98 143 M22-M48 26 26 R-OGK-DIN50/FZ60 TR20 FZ19 19 38 53 M2-M12 9 9 R-OGK-TR20/FZ19 TR28 FZ19 19 38 53 M2-M12 9 9 R-OGK-TR28/FZ19 TR28 FZ31 31 55 76 M6-M20 15 15 R-OGK-TR28/FZ31 TR36 FZ19 19 38 55 M2-M12 9 9 R-OGK-TR36/FZ19 TR36 FZ31 31 55 78 M6-M20 15 15 R-OGK-TR36/FZ31 TR36 FZ48 48 79 111 M14-M33 24 24 R-OGK-TR36/FZ48 TR36 FZ60 60 98 123 M22-M48 26 26 R-OGK-TR36/FZ60 TRE4x8ample oFfZo4r8der / Exa4m8ple of or7de9r / Be1is1p5iel eineMr B1e4st-eMllu3ng3: 24 24 R-OGK-TR48/FZ48 TR48 FZ60 60 98 127 M22-M48 26 26 R-OGK-TR48/FZ60 223344 Example of orderR-OGK-DIN50/FZ60 Available from stockOn request
