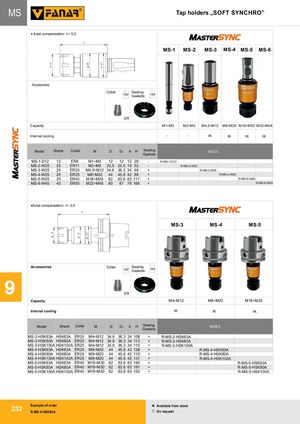

MASTERSYNC MS Tap holders „SOFT SYNCHRO” · Axial compensation: +/- 0,5 MASTERSYNC MS-1 MS-2 MS-3 MS-4 MS-5 MS-6 Accesories Collet Sealing 192 Gaskets 195 ER Capacity M1÷M3 M2÷M5 M4,5÷M12 M8÷M20 M16÷M30 M22÷M48 Internal cooling - - IK IK IK IK Shank Model SShhaannkk Collet M D D A H Sealing INDEX Gaskets MS-1-D12 12 ER8 M1÷M3 12 12 12 28 - R-MS-1-D12 MS-2-W25 25 ER11 M2÷M5 23,5 23,5 19 52 - R-MS-2-W25 MS-3-W25 25 ER20 M4,5÷M12 34,6 36,3 34 69 + R-MS-3-W25 MS-4-W25 25 ER25 M8÷M20 44 45,6 42 88 + R-MS-4-W25 MS-5-W25 25 ER40 M16÷M30 62 63,6 63 117 + R-MS-5-W25 MS-6-W40 40 ER50 M22÷M48 80 87 78 166 + R-MS-6-W40 ·Axial compensation: +/- 0,5 MASTERSYNC MS-3 MS-4 MS-5 Accessories Collet Sealing192Gaskets195 9 ER Capacity M4÷M12 M8÷M20 M16÷M30 Internal cooling IK IK IK Model Shank Collet M D D A H Sealing INDEX Gaskets MS-3-HSK63A HSK63A ER20 M4÷M12 34,6 36,3 34 108 + R-MS-3-HSK63A MS-3-HSK80A HSK80A ER20 M4÷M12 34,6 36,3 34 113 + R-MS-3-HSK80A MS-3-HSK100A HSK100A ER20 M4÷M12 34,6 36,3 34 115 + R-MS-3-HSK100A MS-4-HSK63A HSK63A ER25 M8÷M20 44 45,6 42 128 + R-MS-4-HSK63A MS-4-HSK80A HSK80A ER25 M8÷M20 44 45,6 42 115 + R-MS-4-HSK80A MS-4-HSK100A HSK100A ER25 M8÷M20 44 45,6 42 131 + R-MS-4-HSK100A MS-5-HSK63A HSK63A ER40 M16÷M30 62 63,6 63 160 + R-MS-5-HSK63A MS-5-HSK80A HSK80A ER40 M16÷M30 62 63,6 63 161 + R-MS-5-HSK80A MS-5-HSK100A HSK100A ER40 M16÷M30 62 63,6 63 163 + R-MS-5-HSK100A 223322 Example of orderR-MS-4-HSK63A Available from stockOn request
