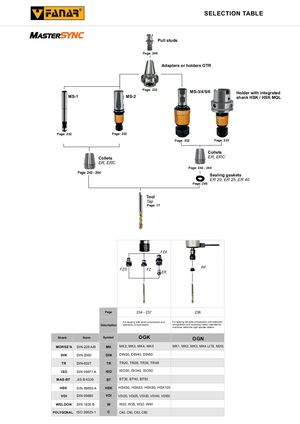

SELECTION TABLE MASTERSYNC Pull studs Page: 249 Adapters or holders OTR Page: 233 MS-3/4/5/6 Holder with integrated MS-1 MS-2 shank HSK / HSK MQL Page: 232 Page: 232 Page: 232 Page: 233 Collets Collets ER, ERC ER, ERC Page: 242 - 244 Page: 242 - 244 Sealing gaskets ER 20, ER 25, ER 40 Page: 245 Tool Tap Page: 17 FZA FZS FZ RF ER 9 Page 234 - 237 238 For tapping with axial compression and For tapping wit axial compression and extension Description extension compensation compesation and reversing motion intended for machines withe the right spindle rotation Shank Norm Symbol OGK OGN MORSE'A DIN-228 A/B MK MK2, MK3, MK4, MK5 MK1, MK2, MK3, MK4 (JT6, M20) DIN DIN-2080 DIN DIN30, DIN40, DIN50 TR DIN-6327 TR TR20, TR28, TR36, TR48 ISO DIN 69871 A ISO ISO30, ISO40, ISO50 MAS-BT JIS B 6339 BT BT30, BT40, BT50 HSK DIN 69893 A HSK HSK50, HSK63, HSK80, HSK100 VDI DIN 69880 VDI VDI20, VDI25, VDI30, VDI40, VDI50 Example of orderWELDON DIN 1835 B W W20, W25, W32, W40 Available from stock 231 POLYGONAL ISO 26623-1 C C40, C50, C63, C80 On request 8
