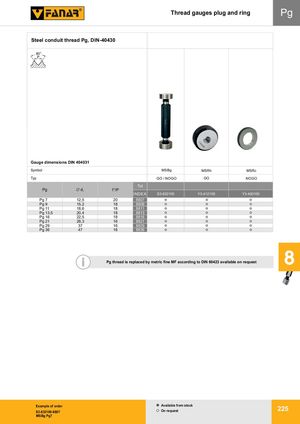

PG Thread gauges plug and ring Pg Steel conduit thread Pg, DIN-40430 HS8S0E0 P PM Gauge dimensions DIN 404031 Symbol MSBg MSRh MSRc Typ GO / NOGO GO NOGO Tolerance Tol Pg Ć d1 1”/P INDEX S3-832100 Y3-412100 Y3-450100 Pg 7 12,5 20 8807 Pg 9 15,2 18 8809 Pg 11 18,6 18 88881017 Pg 13,5 20,4 18 88881039 Pg 16 22,5 18 88881161 Pg 21 28,3 16 88882113 Pg 29 37 16 88882196 Pg 36 47 16 88883261 8829 883688428848 6 i Pg thread is replaced by metric fine MF according to DIN 60423 available on request 8 Example of order Available from stock S3-832100-8807 On request 225 MSBg Pg7
