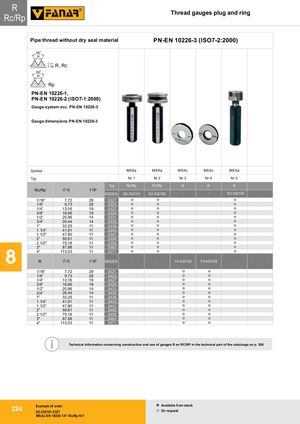

Общий каталог FANAR 2021 - страница 227

R R Thread gauges plug and ring Rc/Rp RC/RP Pipe thread without dry seal material PN-EN 10226-3 (ISO7-2:2000) HS5S5E0 P PM 1:16 R, Rc HS5S5E0 P PM Rp PN-EN 10226-1, PN-EN 10226-2 (ISO7-1:2000) Gauge system acc. PN-EN 10226-3 Gauge dimensions PN-EN 10226-3 Symbol MSXa MSXa MSXc MSXc MSXa Typ Nr 1 Nr 2 Nr 3 Nr 4 Nr 5 Tolerance Tol Rc/Rp Rc/Rp R R R Rc/Rp Ć d1 1”/P INDEX S3-332101 S3-332102 - - S3-332105 1/16” 7,72 28 3321 1/8” 9,73 28 3323 1/4” 13,16 19 3327 3/8” 16,66 19 3329 1/2” 20,96 14 3331 3/4” 26,44 14 3335 1” 32,25 11 3339 1.1/4” 41,91 11 3343 1.1/2” 47,80 11 3347 6 2” 59,61 11 33552.1/2"75,181133593"87,88113363 4" 113,03 11 3371 8 R Ć d1 1”/P INDEX - - Y3-432103 Y3-432104 - 1/16” 7,72 28 3421 1/8” 9,73 28 3423 1/4” 13,16 19 3427 3/8” 16,66 19 3429 1/2” 20,96 14 3431 3/4” 26,44 14 3435 1” 32,25 11 3439 1.1/4” 41,91 11 3443 1.1/2” 47,80 11 3447 2” 59,61 11 3455 2.1/2" 75,18 11 3459 3" 87,88 11 3463 4" 113,03 11 3471 i Technical information concerning construction and use of gauges R an RC/RP in the technical part of the catalouge on p. 306 Example of order Available from stock 224 S3-332101-3327 On request MSXa EN 10226 1/4”-Rc/Rp Nr1
