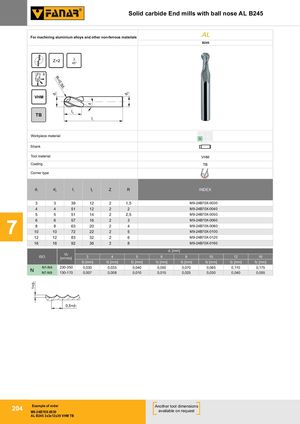

R=0,5d 1 1×d1 d1 λ d2 Solid carbide End mills with ball nose AL B245 For machining aluminium alloys and other non-ferrous materials AL B245 Z=2 l 45° B VHM l2 TB l1 P M K Workpiece material N S H Shank Tool material VHM Coating TB Corner type d1 d2 l1 l2 Z R INDEX 3 3 39 12 2 1,5 M9-24B70X-0030 Tolerancja 4 4 51 12 2 2 M9-24B70X-0040 5 5 51 14 2 2,5 M9-24B70X-0050 6 6 57 16 2 3 M9-24B70X-0060 7 8 8 63 20 2 41010722225 M9-24B70X-0080M9-24B70X-0100 12 12 83 32 2 6 M9-24B70X-0120 16 16 92 36 2 8 M9-24B70X-0160 d1 [mm] Vc ISO [m/min] 3 4 5 6 8 10 12 16 fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] N1-N4 230-350 0,030 0,035 0,040 0,050 0,070 0,085 0,110 0,175 N N7-N9 130-170 0,007 0,008 0,010 0,015 0,025 0,030 0,040 0,055 0,5×d1 Example of order204M9-24B70X-0030 Another tool dimensionsavailable on request AL B245 3x3x12x39 VHM TB
