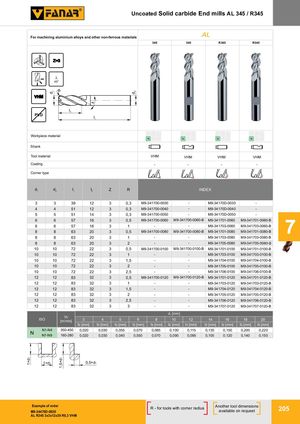

Общий каталог FANAR 2021 - страница 208

1×d1 d1 1,5×d1 λ d2 R Uncoated Solid carbide End mills AL 345 / R345 For machining aluminium alloys and other non-ferrous materials AL 345 345 R345 R345 Z=3 l 45° VHM l2 PVD l1 P M K P M K P M K P M K Workpiece material N S H N S H N S H N S H Shank Tool material VHM VHM VHM VHM Coating - - - - Corner type d1 d2 l1 l2 Z R INDEX 3 3 39 12 3 0,3 M9-341700-0030 - M9-34170D-0030 - Tolerancja 4 4 51 12 3 0,3 M9-341700-0040 - M9-34170D-0040 - 5 5 51 14 3 0,3 M9-341700-0050 - M9-34170D-0050 - 6 6 57 16 3 0,5 M9-341700-0060 M9-341700-0060-B M9-341701-0060 M9-341701-0060-B 68 68 57 166320 33 1 - - M9-341703-0060 M9-341703-0060-B0,5M9-341700-0080M9-341700-0080-BM9-341701-0080M9-341701-0080-B7 8 8 63 20 3 1 - - M9-341703-0080 M9-341703-0080-B 8 8 63 20 3 2 - - M9-341705-0080 M9-341705-0080-B 10 10 72 22 3 0,5 M9-341700-0100 M9-341700-0100-B M9-341701-0100 M9-341701-0100-B 10 10 72 22 3 1 - - M9-341703-0100 M9-341703-0100-B 10 10 72 22 3 1,5 - - M9-341704-0100 M9-341704-0100-B 10 10 72 22 3 2 - - M9-341705-0100 M9-341705-0100-B 10 10 72 22 3 2,5 - - M9-341706-0100 M9-341706-0100-B 12 12 83 32 3 0,5 M9-341700-0120 M9-341700-0120-B M9-341701-0120 M9-341701-0120-B 12 12 83 32 3 1 - - M9-341703-0120 M9-341703-0120-B 12 12 83 32 3 1,5 - - M9-341704-0120 M9-341704-0120-B 12 12 83 32 3 2 - - M9-341705-0120 M9-341705-0120-B 12 12 83 32 3 2,5 - - M9-341706-0120 M9-341706-0120-B 12 12 83 32 3 3 - - M9-341707-0120 M9-341707-0120-B d1 [mm] Vc ISO [m/min] 3 4 5 6 8 10 12 14 16 18 20 fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] N1-N4 350-450 0,020 0,030 0,055 0,070 0,085 0,100 0,115 0,135 0,150 0,200 0,220 N N7-N9 160-280 0,020 0,030 0,040 0,550 0,070 0,090 0,095 0,105 0,120 0,140 0,150 1×d1 0,5×d1 Example of orderM9-34470D-0030 R - for tools with corner radius Another tool dimensionsavailable on request205 AL R345 3x3x12x39 R0,3 VHM
