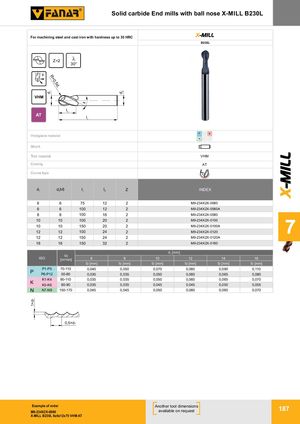

R=0,5d 1 1×d1 d1 λ d2 X-MILL Solid carbide End mills with ball nose X-MILL B230L For machining steel and cast iron with hardness up to 35 HRC X-MILL B230L Z=2 l 30° B VHM l2 AT l1 P M K Workpiece material N S H Shank Tool material VHM Coating AT Corner type d1 d2h6 l1 l2 Z INDEX 6 6 75 12 2 M9-234X2X-0060 Tolerancja 6 6 100 12 2 M9-234X2X-0060A 8 8 100 16 2 M9-234X2X-0080 10 10 100 20 2 M9-234X2X-0100 10 10 150 20 2 M9-234X2X-0100A1212100242M9-234X2X-0120 7 12 12 150 24 2 M9-234X2X-0120A 16 16 150 32 2 M9-234X2X-0160 d1 [mm] Vc ISO [m/min] 6 8 10 12 14 16 fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] P1-P5 70-110 0,040 0,050 0,070 0,085 0,090 0,110 P P6-P12 50-80 0,030 0,035 0,050 0,060 0,065 0,080 K1-K4 90-110 0,035 0,035 0,050 0,060 0,065 0,070 K K5-K6 80-90 0,035 0,035 0,045 0,045 0,050 0,055 N N7-N9 150-170 0,045 0,045 0,050 0,060 0,065 0,070 0,5×d1 Example of order Another tool dimensions M9-234X2X-0060 available on request 187 X-MILL B230L 6x6x12x75 VHM AT
