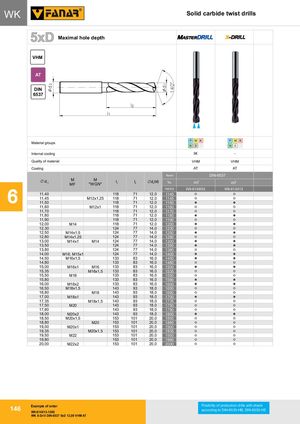

WK Solid carbide twist drills 5xD Maximal hole depth MASTERDRILL VHM AT DIN 6537 P M PK M K P M K Material groups N S NH S H N S H Internal cooling IK - Quality of material VHM VHM Coating AT AT Norm DIN-6537 NakróĆj / Cdh1amfer MMF M"WGN" l1 l2 Ćd2h6 Tol. m7 m7 INDEX W9-614M33 W9-614X13 6 11,4011,4511,50 118 71 12,0 1140M12x1,251187112,011451187112,01150 11,60 M12x1 118 71 12,0 1160 11,70 118 71 12,0 1170 11,80 118 71 12,0 1180 11,90 118 71 12,0 1190 12,00 M14 118 71 12,0 1200 12,30 124 77 14,0 1230 12,50 M14x1,5 124 77 14,0 1250 12,80 M14x1,25 124 77 14,0 1280 13,00 M14x1 M14 124 77 14,0 1300 13,50 124 77 14,0 1350 13,80 124 77 14,0 1380 14,00 M16; M15x1 124 77 14,0 1400 14,50 M16x1,5 133 83 16,0 1450 14,80 133 83 16,0 1480 15,00 M16x1 M16 133 83 16,0 1500 7 15,35 M16x1,5 133 83 16,0 153515,50M181338316,0155015,801338316,01580 16,00 M18x2 133 83 16,0 1600 16,50 M18x1,5 143 93 18,0 1650 16,80 M18 143 93 18,0 1680 17,00 M18x1 143 93 18,0 1700 17,35 M18x1,5 143 93 18,0 1735 17,50 M20 143 93 18,0 1750 17,80 143 93 18,0 1780 18,00 M20x2 143 93 18,0 1800 18,50 M20x1,5 153 101 20,0 1850 18,80 M20 153 101 20,0 1880 19,00 M20x1 153 101 20,0 1900 19,35 M20x1,5 153 101 20,0 1935 19,50 M22 153 101 20,0 1950 19,80 153 101 20,0 1980 20,00 M22x2 153 101 20,0 2000 Example of order Posibility of production drills with shank 146 according to DIN-6535-HB, DIN-6535-HE W9-614X13-1200 WK X-Drill DIN-6537 5xD 12,00 VHM AT
