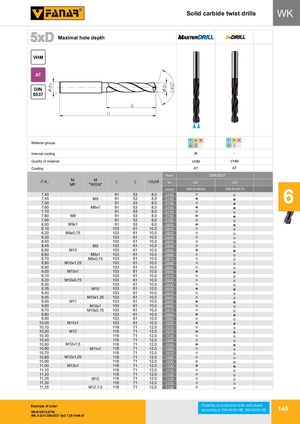

Общий каталог FANAR 2021 - страница 148

Solid carbide twist drills WK 5xD Maximal hole depth MASTERDRILL VHM AT DIN 6537 P M PK M K P M K Material groups N S NH S H N S H Internal cooling IK - Quality of material VHM VHM Coating AT AT Norm DIN-6537 NakróĆj / Cdh1amfer MMF M"WGN" l1 l2 Ćd2h6 Tol. m7 m7 INDEX W9-614M33 W9-614X13 7,40 91 53 8,0 07407,45M891538,007457,5091538,00750 6 7,60 M8x1 91 53 8,0 0760 7,70 91 53 8,0 0770 7,80 M9 91 53 8,0 0780 7,90 91 53 8,0 0790 8,00 M9x1 91 53 8,0 0800 8,10 103 61 10,0 0810 8,20 M9x0,75 103 61 10,0 0820 8,30 103 61 10,0 0830 8,40 103 61 10,0 0840 8,45 M9 103 61 10,0 0845 8,50 M10 103 61 10,0 0850 8,60 M9x1 103 61 10,0 0860 8,70 M9x0,75 103 61 10,0 0870 8,80 M10x1,25 103 61 10,0 0880 8,90 103 61 10,0 0890 9,00 M10x1 103 61 10,0 0900 9,10 103 61 10,0 0910 9,20 M10x0,75 103 61 10,0 0920 9,30 103 61 10,0 0930 9,35 M10 103 61 10,0 0935 9,40 103 61 10,0 0940 9,45 M10x1,25 103 61 10,0 0945 9,50 M11 103 61 10,0 0950 9,60 M10x1 103 61 10,0 0960 9,70 M10x0,75 103 61 10,0 0970 9,80 103 61 10,0 0980 9,90 103 61 10,0 0990 10,00 M11x1 103 61 10,0 1000 10,10 118 71 12,0 1010 10,20 M12 118 71 12,0 1020 10,30 118 71 12,0 1030 10,40 118 71 12,0 1040 10,50 M12x1,5 118 71 12,0 1050 10,60 M11x1 118 71 12,0 1060 10,70 118 71 12,0 1070 10,80 M12x1,25 118 71 12,0 1080 10,90 118 71 12,0 1090 11,00 M12x1 118 71 12,0 1100 11,10 118 71 12,0 1110 11,20 118 71 12,0 1120 11,25 M12 118 71 12,0 1125 11,30 118 71 12,0 1130 11,35 M12,1,5 118 71 12,0 1135 Example of order Posibility of production drills with shank according to DIN-6535-HB, DIN-6535-HE 145 W9-614X13-0750 WK X-Drill DIN-6537 5xD 7,50 VHM AT
