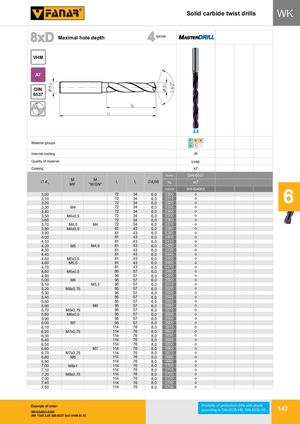

Solid carbide twist drills WK 8xD Maximal hole depth 4 łysinki MASTERDRILL VHM AT DIN 6537 P M K Material groups N S H Internal cooling IK Quality of material VHM Coating AT Norm DIN-6537 NakrójĆ/ Cdh1amfer MMF M"WGN" l1 l2 Ćd2h6 Tol. m7 INDEX W9-624063 3,00 72 34 6,0 03003,1072346,003103,2072346,00320 6 3,30 M4 72 34 6,0 0330 3,40 72 34 6,0 0340 3,50 M4x0,5 72 34 6,0 0350 3,60 72 34 6,0 0360 3,70 M4,5 M4 72 34 6,0 0370 3,80 M4x0,5 81 43 6,0 0380 3,90 81 43 6,0 0390 4,00 81 43 6,0 0400 4,10 81 43 6,0 0410 4,20 M5 M4,5 81 43 6,0 0420 4,30 81 43 6,0 0430 4,40 81 43 6,0 0440 4,50 M5x0,5 81 43 6,0 0450 4,60 M5,5 81 43 6,0 0460 4,70 81 43 6,0 0470 4,80 M5x0,5 95 57 6,0 0480 4,90 95 57 6,0 0490 5,00 M6 95 57 6,0 0500 5,10 M5,5 95 57 6,0 0510 5,20 M6x0,75 95 57 6,0 0520 5,30 95 57 6,0 0530 5,40 95 57 6,0 0540 5,50 95 57 6,0 0550 5,60 M6 95 57 6,0 0560 5,70 M6x0,75 95 57 6,0 0570 5,80 M6x0,5 95 57 6,0 0580 5,90 95 57 6,0 0590 6,00 M7 95 57 6,0 0600 6,10 114 76 8,0 0610 6,20 M7x0,75 114 76 8,0 0620 6,30 114 76 8,0 0630 6,40 114 76 8,0 0640 6,50 114 76 8,0 0650 6,60 M7 114 76 8,0 0660 6,70 M7x0,75 114 76 8,0 0670 6,80 M8 114 76 8,0 0680 6,90 114 76 8,0 0690 7,00 M8x1 114 76 8,0 0700 7,10 114 76 8,0 0710 7,20 M8x0,75 114 76 8,0 0720 7,30 114 76 8,0 0730 7,40 114 76 8,0 0740 7,50 114 76 8,0 0750 Example of order Posibility of production drills with shank according to DIN-6535-HB, DIN-6535-HE 147 W9-624063-0300 WK 1300 3,00 DIN-6537 8xD VHM IK AT
