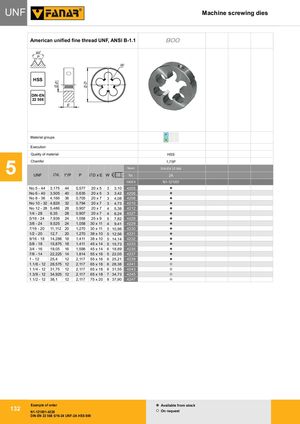

d1 D UNF Machine screwing dies UMNF American unified fine thread UNF, ANSI B-1.1 800 HS6S0E0 PMP W HSS DIN-EN 22 568 E P M K Material groups N S H Execution Quality of material HSS Chamfer 1,75P 45 UNF Ćd1 1"/P P ĆD x E W NormTol. DIN-EN 22 5682A INDEX N1-121001 NToole5ra-n4cj4a 3,175 44 0,577 20 x 5 3 3,10 4205 No 6 - 40 3,505 40 0,635 20 x 5 3 3,42 4206 No 8 - 36 4,166 36 0,705 20 x 7 3 4,08 4208 No 10 - 32 4,826 32 0,794 20 x 7 3 4,73 4210 No 12 - 28 5,486 28 0,907 20 x 7 4 5,38 4212 1/4 - 28 6,35 28 0,907 20 x 7 4 6,24 4227 5/16 - 24 7,938 24 1,058 25 x 9 5 7,82 4228 3/8 - 24 9,525 24 1,058 30 x 11 4 9,41 4229 7/16 - 20 11,112 20 1,270 30 x 11 5 10,98 4230 1/2 - 20 12,7 20 1,270 38 x 10 5 12,56 4231 9To/1le6ra- n1c8ja 14,288 18 1,411 38 x 10 5 14,14 4232 5/8 - 18 15,875 18 1,411 45 x 14 5 15,73 4233 3/4 - 16 19,05 16 1,588 45 x 14 6 18,89 4235 7/8 - 14 22,225 14 1,814 55 x 16 5 22,05 4237 1 - 12 25,4 12 2,117 55 x 16 6 25,21 4239 1.1/8 - 12 28,575 12 2,117 65 x 18 6 28,38 4241 1.1/4 - 12 31,75 12 2,117 65 x 18 6 31,55 4243 1.3/8 - 12 34,925 12 2,117 65 x 18 7 34,73 4245 1.1/2 - 12 38,1 12 2,117 75 x 20 8 37,90 4247 Example of order Available from stock 132 N1-121001-4228 On request DIN-EN 22 568 5/16-24 UNF-2A HSS 800
