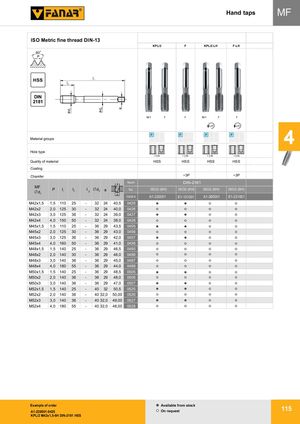

Общий каталог FANAR 2021 - страница 118
Навигация
Общий каталог FANAR 2018
Каталог FANAR цельные твердосплавные фрезы
Метчики ручные
MF
ISO метрическая мелкая резьба DIN-13. Метрическая мелкая резьба ISO DIN-13. KPL-800.
KPL/2, F, KPL/2-LH, F-LH. Качество материала: HSS. Тип отверстия: < 2,5d. Фаска: ~3P (для F и F-LH). Норма: DIN-2181. Допуск: ISO2 (6H).
| MF Ćd1 | P | l1 | l2 | l3 | Ćd2 | a | INDEX (KPL/2, A1-220001) | INDEX (F, E1-131001) | INDEX (KPL/2-LH, A1-260001) | INDEX (F-LH, E1-231001) |
|---|---|---|---|---|---|---|---|---|---|---|
| M42x1,5 | 1,5 | 110 | 25 | - | 32 | 24/40,5 | 0425 | |||
| M42x2 | 2,0 | 125 | 30 | - | 32 | 24/40,0 | 0426 | |||
| M42x3 | 3,0 | 125 | 36 | - | 32 | 24/39,0 | 0427 | |||
| M42x4 | 4,0 | 150 | 50 | - | 32 | 24/38,0 | 0428 | |||
| M45x1,5 | 1,5 | 110 | 25 | - | 36 | 29/43,5 | 0455 | |||
| M45x2 | 2,0 | 125 | 30 | - | 36 | 29/43,0 | 0456 | |||
| M45x3 | 3,0 | 125 | 36 | - | 36 | 29/42,0 | 0457 | |||
| M45x4 | 4,0 | 160 | 50 | - | 36 | 29/41,0 | 0458 | |||
| M48x1,5 | 1,5 | 140 | 25 | - | 36 | 29/46,5 | 0485 | |||
| M48x2 | 2,0 | 140 | 30 | - | 36 | 29/46,0 | 0486 | |||
| M48x3 | 3,0 | 140 | 36 | - | 36 | 29/45,0 | 0487 | |||
| M48x4 | 4,0 | 180 | 55 | - | 36 | 29/44,0 | 0488 | |||
| M50x1,5 | 1,5 | 140 | 25 | - | 36 | 29/48,5 | 0505 | |||
| M50x2 | 2,0 | 140 | 36 | - | 36 | 29/48,0 | 0506 | |||
| M50x3 | 3,0 | 140 | 36 | - | 36 | 29/47,0 | 0507 | |||
| M52x1,5 | 1,5 | 140 | 25 | - | 40 | 32/50,5 | 0525 | |||
| M52x2 | 2,0 | 140 | 36 | - | 40 | 32,0/50,00 | 0526 | |||
| M52x3 | 3,0 | 140 | 36 | - | 40 | 32,0/49,00 | 0527 | |||
| M52x4 | 4,0 | 180 | 55 | - | 40 | 32,0/48,00 | 0528 |
Пример заказа
A1-220001-0425
KPL/2 M42x1,5-6H DIN-2181 HSS
Наличие на складе: по запросу.
