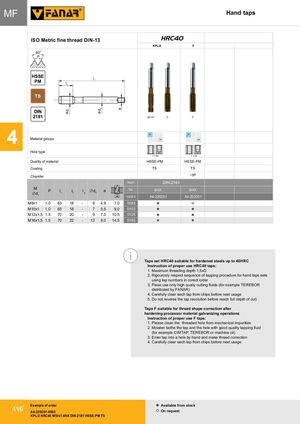

d1 d2 a MF Hand taps MF ISO Metric fine thread DIN-13 HRC40 KPL-800 Gwint metryczny drobnozwojny ISO DIN-13 KPL/2 F 600 P HSSE l1 PM l2 TS DIN 2181 Nr1-P F F 4 Material groups P M K P M KNSHNSH Hole type < 1,5d < 1,5d Quality of material HSSE-PM HSSE-PM Coating TS TS Chamfer ~3P Norm DIN-2181 MĆd P l1 l2 l 3 Ć d2 a Tol. 6HX 6HX 1 INDEX A4-225D51 A4-202D51 M8x1 1,0 63 18 - 6 4,9 7,0 0083 M10x1 1,0 63 18 - 7 5,5 9,0 0103 M12x1,5 1,5 70 20 - 9 7,0 10,5 0125 M16x1,5 1,5 70 22 - 12 9,0 14,5 0165 i Taps set HRC40 suitable for hardened steels up to 40HRC Instruction of proper use HRC40 taps: 1. Maximum threading depth 1,5xD 2. Rigourosly respect sequence of tapping procedure for hand taps sets using tap numbers in corect order 3. Plese use only high qualiy cutting fluids (for example TEREBOR distributed by FANAR) 4. Carefully clear each tap from chips before next usage 5. Do not reverse the tap revolution before reach full depth of cut) Taps F suitable for thread shape correction after hardening processor material galvanizing operations Instruction of proper use F taps: 1. Please clean the threaded hole from mechanical impurities 2. Moisten bothe the tap and the hole with good quality tapping fluid (for example CIMTAP, TEREBOR or machine oil) 3. Enter tap into a hole by hand and make thread correction 4. Carefully clear each tap from chips before next usage Example of order Available from stock 116 A4-225D51-0083 On request KPL/2 HRC40 M10x1-6HX DIN-2181 HSSE-PM TS
