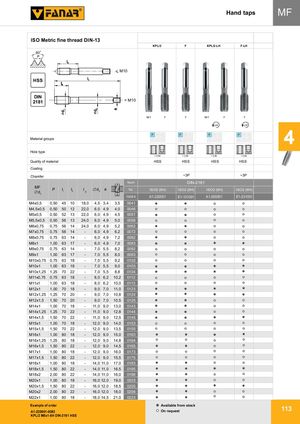

Общий каталог FANAR 2021 - страница 116
Навигация
Общий каталог FANAR 2018
Каталог FANAR цельные твердосплавные фрезы
Метчики ручные
MF
ISO метрическая мелкая резьба DIN-13. Метрическая мелкая резьба ISO DIN-13. KPL-800.
KPL/2, F, KPL/2-LH, F-LH. Качество материала: HSS. Тип отверстия: < 2,5d. Фаска: ~3P (для F и F-LH). Норма: DIN-2181. Допуск: ISO2 (6H).
| MF Ćd1 | P | l1 | l2 | l3 | Ćd2 | a | INDEX (KPL/2, A1-220001) | INDEX (F, E1-131001) | INDEX (KPL/2-LH, A1-260001) | INDEX (F-LH, E1-231001) |
|---|---|---|---|---|---|---|---|---|---|---|
| M4x0,5 | 0,50 | 45 | 10 | 18,0 | 4,5 | 3,4/3,5 | 0041 | |||
| M4,5x0,5 | 0,50 | 50 | 12 | 22,0 | 6,0 | 4,9/4,0 | 0046 | |||
| M5x0,5 | 0,50 | 52 | 13 | 22,0 | 6,0 | 4,9/4,5 | 0051 | |||
| M5,5x0,5 | 0,50 | 56 | 13 | 24,0 | 6,0 | 4,9/5,0 | 0056 | |||
| M6x0,75 | 0,75 | 56 | 14 | 24,0 | 6,0 | 4,9/5,2 | 0062 | |||
| M7x0,75 | 0,75 | 56 | 14 | - | 6,0 | 4,9/6,2 | 0072 | |||
| M8x0,75 | 0,75 | 63 | 14 | - | 6,0 | 4,9/7,2 | 0082 | |||
| M8x1 | 1,00 | 63 | 17 | - | 6,0 | 4,9/7,0 | 0083 | |||
| M9x0,75 | 0,75 | 63 | 14 | - | 7,0 | 5,5/8,2 | 0092 | |||
| M9x1 | 1,00 | 63 | 17 | - | 7,0 | 5,5/8,0 | 0093 | |||
| M10x0,75 | 0,75 | 63 | 18 | - | 7,0 | 5,5/9,2 | 0102 | |||
| M10x1 | 1,00 | 63 | 18 | - | 7,0 | 5,5/9,0 | 0103 | |||
| M10x1,25 | 1,25 | 70 | 22 | - | 7,0 | 5,5/8,8 | 0104 | |||
| M11x0,75 | 0,75 | 63 | 18 | - | 8,0 | 6,2/10,2 | 0112 | |||
| M11x1 | 1,00 | 63 | 18 | - | 8,0 | 6,2/10,0 | 0113 | |||
| M12x1 | 1,00 | 70 | 18 | - | 9,0 | 7,0/11,0 | 0123 | |||
| M12x1,25 | 1,25 | 70 | 20 | - | 9,0 | 7,0/10,8 | 0124 | |||
| M12x1,5 | 1,50 | 70 | 20 | - | 9,0 | 7,0/10,5 | 0125 | |||
| M14x1 | 1,00 | 70 | 18 | - | 11,0 | 9,0/13,0 | 0143 | |||
| M14x1,25 | 1,25 | 70 | 22 | - | 11,0 | 9,0/12,8 | 0144 | |||
| M14x1,5 | 1,50 | 70 | 22 | - | 11,0 | 9,0/12,5 | 0145 | |||
| M15x1 | 1,00 | 70 | 18 | - | 12,0 | 9,0/14,0 | 0153 | |||
| M15x1,5 | 1,50 | 70 | 22 | - | 12,0 | 9,0/13,5 | 0155 | |||
| M16x1 | 1,00 | 80 | 18 | - | 12,0 | 9,0/15,0 | 0163 | |||
| M16x1,25 | 1,25 | 80 | 18 | - | 12,0 | 9,0/14,8 | 0164 | |||
| M16x1,5 | 1,50 | 80 | 22 | - | 12,0 | 9,0/14,5 | 0165 | |||
| M17x1 | 1,00 | 80 | 18 | - | 12,0 | 9,0/16,0 | 0173 | |||
| M17x1,5 | 1,50 | 80 | 22 | - | 12,0 | 9,0/15,5 | 0175 | |||
| M18x1 | 1,00 | 80 | 18 | - | 14,0 | 11,0/17,0 | 0183 | |||
| M18x1,5 | 1,50 | 80 | 22 | - | 14,0 | 11,0/16,5 | 0185 | |||
| M18x2 | 2,00 | 80 | 22 | - | 14,0 | 11,0/16,0 | 0186 | |||
| M20x1 | 1,00 | 80 | 18 | - | 16,0 | 12,0/19,0 | 0203 | |||
| M20x1,5 | 1,50 | 80 | 22 | - | 16,0 | 12,0/18,5 | 0205 | |||
| M20x2 | 2,00 | 80 | 22 | - | 16,0 | 12,0/18,0 | 0206 | |||
| M22x1 | 1,00 | 80 | 18 | - | 18,0 | 14,5/21,0 | 0223 |
Пример заказа
A1-220001-0083
KPL/2 M8x1-6H DIN-2181 HSS
Наличие на складе: по запросу.
