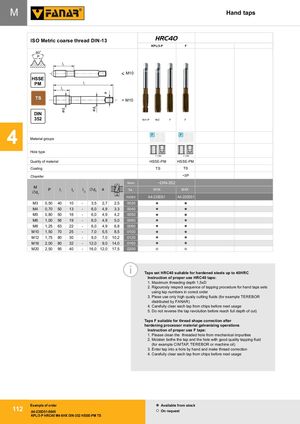

Общий каталог FANAR 2021 - страница 115

d1 d2 a M Hand taps GISwOinMt meteritcryccozanrysedrtohbrenaodzwDoINjn-y13ISO DIN-13 HRC40 KPL-800 KPL/3-P F 600 P l3 ⩽ M10 HSSE PM l1 l2 TS > M10 DIN 352 Nr1-P Nr2 F F 4 Material groups P M K P M KNSHNSH Hole type < 1,5d < 1,5d Quality of material HSSE-PM HSSE-PM Coating TS TS Chamfer ~3P Norm ~DIN-352 MĆd P l1 l2 l 3 Ć d2 a Tol. 6HX 6HX 1 INDEX A4-235D51 A4-203D51 M3 0,50 40 10 - 3,5 2,7 2,5 0030 M4 0,70 50 13 - 6,0 4,9 3,3 0040 M5 0,80 50 16 - 6,0 4,9 4,2 0050 M6 1,00 56 19 - 6,0 4,9 5,0 0060 M8 1,25 63 22 - 6,0 4,9 6,8 0080 M10 1,50 70 25 - 7,0 5,5 8,5 0100 M12 1,75 80 30 - 9,0 7,0 10,2 0120 M16 2,00 80 32 - 12,0 9,0 14,0 0160 M20 2,50 95 40 - 16,0 12,0 17,5 0200 i Taps set HRC40 suitable for hardened steels up to 40HRC Instruction of proper use HRC40 taps: 1. Maximum threading depth 1,5xD 2. Rigourosly respect sequence of tapping procedure for hand taps sets using tap numbers in corect order 3. Plese use only high qualiy cutting fluids (for example TEREBOR distributed by FANAR) 4. Carefully clear each tap from chips before next usage 5. Do not reverse the tap revolution before reach full depth of cut) Taps F suitable for thread shape correction after hardening processor material galvanizing operations Instruction of proper use F taps: 1. Please clean the threaded hole from mechanical impurities 2. Moisten bothe the tap and the hole with good quality tapping fluid (for example CIMTAP, TEREBOR or machine oil) 3. Enter tap into a hole by hand and make thread correction 4. Carefully clear each tap from chips before next usage Example of order Available from stock 112 A4-235D51-0040 On request KPL/3-P HRC40 M4-6HX DIN-352 HSSE-PM TS
