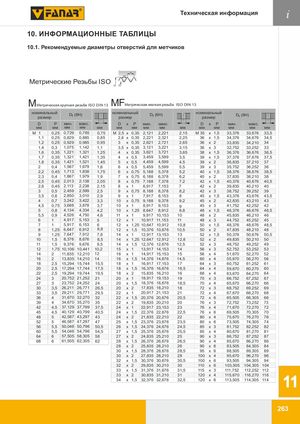

Общий каталог FANAR 2018 - страница 267
Навигация
Каталог FANAR цельные твердосплавные фрезы
Общий каталог FANAR 2021
10. ИНФОРМАЦИОННЫЕ ТАБЛИЦЫ
10.1. Рекомендуемые диаметры отверстий для метчиков
Метрические резьбы ISO
M — метрическая крупная резьба ISO DIN 13
| Номинальный размер D | P | D1 (6H) мин. | D1 (6H) макс. | Номинальный размер |
|---|---|---|---|---|
| 1 | 0,25 | 0,729 | 0,785 | 0,75 |
| 1,1 | 0,25 | 0,829 | 0,885 | 0,85 |
| 1,2 | 0,25 | 0,929 | 0,985 | 0,95 |
| 1,4 | 0,3 | 1,075 | 1,142 | 1,1 |
| 1,6 | 0,35 | 1,221 | 1,321 | 1,25 |
| 1,7 | 0,35 | 1,321 | 1,421 | 1,35 |
| 1,8 | 0,35 | 1,421 | 1,521 | 1,45 |
| 2 | 0,4 | 1,567 | 1,679 | 1,6 |
| 2,2 | 0,45 | 1,713 | 1,838 | 1,75 |
| 2,3 | 0,4 | 1,867 | 1,979 | 1,9 |
| 2,5 | 0,45 | 2,013 | 2,138 | 2,05 |
| 2,6 | 0,45 | 2,113 | 2,238 | 2,15 |
| 3 | 0,5 | 2,459 | 2,599 | 2,5 |
| 3,5 | 0,6 | 2,850 | 3,010 | 2,9 |
| 4 | 0,7 | 3,242 | 3,422 | 3,3 |
| 4,5 | 0,75 | 3,688 | 3,878 | 3,7 |
| 5 | 0,8 | 4,134 | 4,334 | 4,2 |
| 5,5 | 0,9 | 4,526 | 4,750 | 4,6 |
| 6 | 1 | 4,917 | 5,153 | 5 |
| 7 | 1 | 5,917 | 6,153 | 6 |
| 8 | 1,25 | 6,647 | 6,912 | 6,8 |
| 9 | 1,25 | 7,647 | 7,912 | 7,8 |
| 10 | 1,5 | 8,376 | 8,676 | 8,5 |
| 11 | 1,5 | 9,376 | 9,676 | 9,5 |
| 12 | 1,75 | 10,106 | 10,441 | 10,2 |
| 14 | 2 | 11,835 | 12,210 | 12 |
| 16 | 2 | 13,835 | 14,210 | 14 |
| 18 | 2,5 | 15,294 | 15,744 | 15,5 |
| 20 | 2,5 | 17,294 | 17,744 | 17,5 |
| 22 | 2,5 | 19,294 | 19,744 | 19,5 |
| 24 | 3 | 20,752 | 21,252 | 21 |
| 27 | 3 | 23,752 | 24,252 | 24 |
| 30 | 3,5 | 26,211 | 26,771 | 26,5 |
| 33 | 3,5 | 29,211 | 29,771 | 29,5 |
| 36 | 4 | 31,670 | 32,270 | 32 |
| 39 | 4 | 34,670 | 35,270 | 35 |
| 42 | 4,5 | 37,129 | 37,799 | 37,5 |
| 45 | 4,5 | 40,129 | 40,799 | 40,5 |
| 48 | 5 | 42,587 | 43,297 | 43 |
| 52 | 5 | 46,587 | 47,297 | 47 |
| 56 | 5,5 | 50,046 | 50,796 | 50,5 |
| 60 | 5,5 | 54,046 | 54,796 | 54,5 |
| 64 | 6 | 57,505 | 58,305 | 58 |
| 68 | 6 | 61,505 | 62,305 | 62 |
MF — метрическая мелкая резьба ISO DIN 13
| Номинальный размер D x P | D1 (6H) мин. | D1 (6H) макс. | Номинальный размер |
|---|---|---|---|
| 2,5 x 0,35 | 2,121 | 2,221 | 2,15 |
| 2,6 x 0,35 | 2,221 | 2,321 | 2,25 |
| 3 x 0,35 | 2,621 | 2,721 | 2,65 |
| 3,5 x 0,35 | 3,121 | 3,221 | 3,15 |
| 4 x 0,35 | 3,621 | 3,721 | 3,65 |
| 4 x 0,5 | 3,459 | 3,599 | 3,5 |
| 5 x 0,5 | 4,459 | 4,599 | 4,5 |
| 6 x 0,5 | 5,459 | 5,599 | 5,5 |
| 6 x 0,75 | 5,188 | 5,378 | 5,2 |
| 7 x 0,75 | 6,188 | 6,378 | 6,2 |
| 8 x 0,75 | 7,188 | 7,378 | 7,2 |
| 8 x 1 | 6,917 | 7,153 | 7 |
| 9 x 0,75 | 8,188 | 8,378 | 8,2 |
| 9 x 1 | 7,917 | 8,153 | 8 |
| 10 x 0,75 | 9,188 | 9,378 | 9,2 |
| 10 x 1 | 8,917 | 9,153 | 9 |
| 10 x 1,25 | 8,647 | 8,912 | 8,8 |
| 11 x 1 | 9,917 | 10,153 | 10 |
| 12 x 1 | 10,917 | 11,153 | 11 |
| 12 x 1,25 | 10,647 | 10,912 | 10,8 |
| 12 x 1,5 | 10,376 | 10,676 | 10,5 |
| 14 x 1 | 12,917 | 13,153 | 13 |
| 14 x 1,25 | 12,647 | 12,912 | 12,8 |
| 14 x 1,5 | 12,376 | 12,676 | 12,5 |
| 15 x 1 | 13,917 | 14,153 | 14 |
| 16 x 1 | 14,917 | 15,153 | 15 |
| 16 x 1,5 | 14,376 | 14,676 | 14,5 |
| 18 x 1 | 16,917 | 17,153 | 17 |
| 18 x 1,5 | 16,376 | 16,676 | 16,5 |
| 18 x 2 | 15,835 | 16,210 | 16 |
| 20 x 1 | 18,917 | 19,153 | 19 |
| 20 x 1,5 | 18,376 | 18,676 | 18,5 |
| 20 x 2 | 17,835 | 18,210 | 18 |
| 22 x 1 | 20,917 | 21,153 | 21 |
| 22 x 1,5 | 20,376 | 20,676 | 20,5 |
| 22 x 2 | 19,835 | 20,210 | 20 |
| 24 x 1 | 22,917 | 23,153 | 23 |
| 24 x 1,5 | 22,376 | 22,676 | 22,5 |
| 24 x 2 | 21,835 | 22,210 | 22 |
| 25 x 1,5 | 23,376 | 23,676 | 23,5 |
| 26 x 1,5 | 24,376 | 24,676 | 24,5 |
| 27 x 1,5 | 25,376 | 25,676 | 25,5 |
| 27 x 2 | 24,835 | 25,210 | 25 |
| 28 x 1,5 | 26,376 | 26,676 | 26,5 |
| 28 x 2 | 25,835 | 26,210 | 26 |
| 30 x 1,5 | 28,376 | 28,676 | 28,5 |
| 30 x 2 | 27,835 | 28,210 | 28 |
| 32 x 1,5 | 30,376 | 30,676 | 30,5 |
| 32 x 2 | 29,835 | 30,210 | 30 |
| 33 x 1,5 | 31,376 | 31,676 | 31,5 |
| 33 x 2 | 30,835 | 31,210 | 31 |
| 34 x 1,5 | 32,376 | 32,676 | 32,5 |
| 35 x 1,5 | 33,376 | 33,676 | 33,5 |
| 36 x 1,5 | 34,376 | 34,676 | 34,5 |
| 36 x 2 | 33,835 | 34,210 | 34 |
| 36 x 3 | 32,752 | 33,252 | 33 |
| 38 x 1,5 | 36,376 | 36,676 | 36,5 |
| 39 x 1,5 | 37,376 | 37,676 | 37,5 |
| 39 x 2 | 36,835 | 37,210 | 37 |
| 39 x 3 | 35,752 | 36,252 | 36 |
| 40 x 1,5 | 38,376 | 38,676 | 38,5 |
| 40 x 2 | 37,835 | 38,210 | 38 |
| 42 x 1,5 | 40,376 | 40,676 | 40,5 |
| 42 x 2 | 39,835 | 40,210 | 40 |
| 42 x 3 | 38,752 | 39,252 | 39 |
| 45 x 1,5 | 43,376 | 43,676 | 43,5 |
| 45 x 2 | 42,835 | 43,210 | 43 |
| 45 x 3 | 41,752 | 42,252 | 42 |
| 48 x 1,5 | 46,376 | 46,676 | 46,5 |
| 48 x 2 | 45,835 | 46,210 | 46 |
| 48 x 3 | 44,752 | 45,252 | 45 |
| 50 x 1,5 | 48,376 | 48,676 | 48,5 |
| 50 x 2 | 47,835 | 48,210 | 48 |
| 52 x 1,5 | 50,376 | 50,676 | 50,5 |
| 52 x 2 | 49,835 | 50,210 | 50 |
| 52 x 3 | 48,752 | 49,252 | 49 |
| 56 x 3 | 52,752 | 53,252 | 53 |
| 56 x 4 | 51,670 | 52,270 | 52 |
| 60 x 4 | 55,670 | 56,270 | 56 |
| 64 x 3 | 60,752 | 61,252 | 61 |
| 64 x 4 | 59,670 | 60,270 | 60 |
| 68 x 4 | 63,670 | 64,270 | 64 |
| 70 x 3 | 66,752 | 67,252 | 67 |
| 70 x 4 | 65,670 | 66,270 | 66 |
| 72 x 3 | 68,752 | 69,252 | 69 |
| 72 x 4 | 67,670 | 68,270 | 68 |
| 72 x 6 | 65,505 | 66,305 | 66 |
| 76 x 3 | 72,752 | 73,252 | 73 |
| 76 x 4 | 71,670 | 72,270 | 72 |
| 76 x 6 | 69,505 | 70,305 | 70 |
| 80 x 4 | 75,670 | 76,270 | 76 |
| 80 x 6 | 73,505 | 74,305 | 74 |
| 85 x 3 | 81,752 | 82,252 | 82 |
| 85 x 4 | 80,670 | 81,270 | 81 |
| 90 x 3 | 86,752 | 87,252 | 87 |
| 90 x 4 | 85,670 | 86,270 | 86 |
| 90 x 6 | 83,505 | 84,305 | 84 |
| 95 x 6 | 88,505 | 89,305 | 89 |
| 100 x 4 | 95,670 | 96,270 | 96 |
| 100 x 6 | 93,505 | 94,305 | 94 |
| 110 x 6 | 103,505 | 104,305 | 104 |
| 115 x 3 | 111,752 | 112,252 | 112 |
| 120 x 4 | 115,670 | 116,270 | 116 |
| 120 x 6 | 113,505 | 114,305 | 114 |
