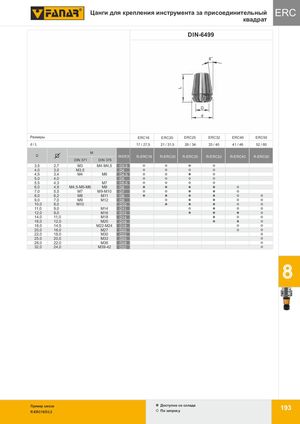

ERC — Цанги для крепления инструмента за присоединительный квадрат
Стандарт: DIN-6499
| Размеры | ERC16 | ERC20 | ERC25 | ERC32 | ERC40 | ERC50 |
|---|---|---|---|---|---|---|
| d/L | 17 / 27,5 | 21 / 31,5 | 26 / 34 | 33 / 40 | 41 / 46 | 52 / 60 |
| INDEX | R-ERC16 | R-ERC20 | R-ERC25 | R-ERC32 | R-ERC40 | R-ERC50 |
| D | d | M (DIN 371) | M (DIN 376) | Обозначение |
|---|---|---|---|---|
| 3,5 | 2,7 | M3 | M4-M4,5 | D3,5 |
| 4,0 | 3,0 | M3,5 | D4 | |
| 4,5 | 3,4 | M4 | M6 | D4,5 |
| 5,0 | 4,0 | D5 | ||
| 5,5 | 4,3 | M7 | D5,5 | |
| 6,0 | 4,9 | M4,5-M5-M6 | M8 | D6 |
| 7,0 | 5,5 | M7 | M9-M10 | D7 |
| 8,0 | 6,2 | M8 | M11 | D8 |
| 9,0 | 7,0 | M9 | M12 | D9 |
| 10,0 | 8,0 | M10 | D10 | |
| 11,0 | 9,0 | M14 | D11 | |
| 12,0 | 9,0 | M16 | D12 | |
| 14,0 | 11,0 | M18 | D14 | |
| 16,0 | 12,0 | M20 | D16 | |
| 18,0 | 14,5 | M22-M24 | D18 | |
| 20,0 | 16,0 | M27 | D20 | |
| 22,0 | 18,0 | M30 | D22 | |
| 25,0 | 20,0 | M33 | D25 | |
| 28,0 | 22,0 | M36 | D28 | |
| 32,0 | 24,0 | M39-42 | D32 |
Пример заказа
R-ERC16/D3,5 — Доступнo со склада / По запросу
