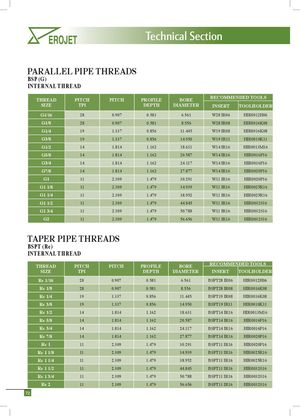

Technical Section

PARALLEL PIPE THREADS

BSP (G)

INTERNAL THREAD

THREAD	PITCH	PITCH	PROFILE	BORE	RECOMME	NDED TOOLS
SIZE	TPI		DEPTH	DIAMETER	INSERT	TOOLHOLDER
G1/16	28	0.907	0.581	6.561	W28 IR06	HIR0012H06
G1/8	28	0.907	0.581	8.556	W28 IR08	HIR0016K08
G1/4	19	1.337	0.856	11.445	W19 IR08	HIR0016K08
G3/8	19	1.337	0.856	14.950	W19 IR11	HIR0010K11
G1/2	14	1.814	1.162	18.631	W14 IR16	HIR0013M16
G5/8	14	1.814	1.162	20.587	W14 IR16	HIR0016P16
G3/4	14	1.814	1.162	24.117	W14 IR16	HIR0016P16
G7/8	14	1.814	1.162	27.877	W14 IR16	HIR0020P16
G1	11	2.309	1.479	30.291	W11 IR16	HIR0020P16
G1 1/8	11	2.309	1.479	34.939	W11 IR16	HIR0025R16
G1 1/4	11	2.309	1.479	38.952	W11 IR16	HIR0025R16
G1 1/2	11	2.309	1.479	44.845	W11 IR16	HIR0032S16
G1 3/4	11	2.309	1.479	50.788	W11 IR16	HIR0032S16
G2	11	2.309	1.479	56.656	W11 IR16	HIR0032S16

TAPER PIPE THREADS

BSPT (Rc)

INTERNAL THREAD

THREAD	PITCH	PITCH	PROFILE	BORE	RECOMME	NDED TOOLS
SIZE	TPI		DEPTH	DIAMETER	INSERT	TOOLHOLDER
Rc 1/16	28	0.907	0.581	6.561	BSPT28 IR06	HIR0012H06
Rc 1/8	28	0.907	0.581	8.556	BSPT28 IR08	HIR0016K08
Rc 1/4	19	1.337	0.856	11.445	BSPT19 IR08	HIR0016K08
Rc 3/8	19	1.337	0.856	14.950	BSPT19 IR11	HIR0010K11
Rc 1/2	14	1.814	1.162	18.631	BSPT14 IR16	HIR0013M16
Rc 5/8	14	1.814	1.162	20.587	BSPT14 IR16	HIR0016P16
Rc 3/4	14	1.814	1.162	24.117	BSPT14 IR16	HIR0016P16
Rc 7/8	14	1.814	1.162	27.877	BSPT14 IR16	HIR0020P16
Rc 1	11	2.309	1.479	30.291	BSPT11 IR16	HIR0020P16
Rc 1 1/8	11	2.309	1.479	34.939	BSPT11 IR16	HIR0025R16
Rc 1 1/4	11	2.309	1.479	38.952	BSPT11 IR16	HIR0025R16
Rc 1 1/2	11	2.309	1.479	44.845	BSPT11 IR16	HIR0032S16
Rc 1 3/4	11	2.309	1.479	50.788	BSPT11 IR16	HIR0032S16
Rc 2	11	2.309	1.479	56.656	BSPT11 IR16	HIR0032S16
