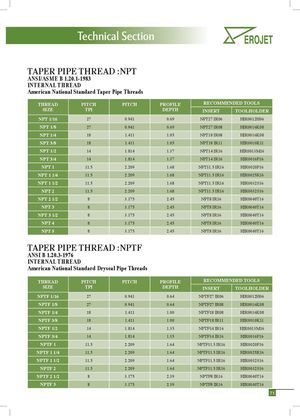

Каталог Erojet резьбонарезные пластины и державки - страница 73

Каталог Erojet монолитные резбофрезы

Каталог Erojet монолитные резбофрезы

TAPER PIPE THREAD :NPT

ANSI/ASME B 1.20.1-1983

INTERNAL THREAD

American National Standard Taper Pipe Threads

THREAD	PITCH	PITCH	PROFILE	RECOMME	NDED TOOLS
SIZE	TPI		DEPTH	INSERT	TOOLHOLDER
NPT 1/16	27	0.941	0.69	NPT27 IR06	HIR0012H06
NPT 1/8	27	0.941	0.69	NPT27 IR08	HIR0016K08
NPT 1/4	18	1.411	1.05	NPT18 IR08	HIR0016K08
NPT 3/8	18	1.411	1.05	NPT18 IR11	HIR0010K11
NPT 1/2	14	1.814	1.37	NPT14 IR16	HIR0013M16
NPT 3/4	14	1.814	1.37	NPT14 IR16	HIR0016P16
NPT 1	11.5	2.209	1.68	NPT11.5 IR16	HIR0020P16
NPT 1 1/4	11.5	2.209	1.68	NPT11.5 IR16	HIR0025R16
NPT 1 1/2	11.5	2.209	1.68	NPT11.5 IR16	HIR0032S16
NPT 2	11.5	2.209	1.68	NPT11.5 IR16	HIR0032S16
NPT 2 1/2	8	3.175	2.45	NPT8 IR16	HIR0040T16
NPT 3	8	3.175	2.45	NPT8 IR16	HIR0040T16
NPT 3 1/2	8	3.175	2.45	NPT8 IR16	HIR0040T16
NPT 4	8	3.175	2.45	NPT8 IR16	HIR0040T16
NPT 5	8	3.175	2.45	NPT8 IR16	HIR0040T16

TAPER PIPE THREAD :NPTF

ANSI B 1.20.3-1976

INTERNAL THREAD

American National Standard Dryseal Pipe Threads

THREAD	PITCH	PITCH	PROFILE	RECOMME	NDED TOOLS
SIZE	TPI		DEPTH	INSERT	TOOLHOLDER
NPTF 1/16	27	0.941	0.64	NPTF27 IR06	HIR0012H06
NPTF 1/8	27	0.941	0.64	NPTF27 IR08	HIR0016K08
NPTF 1/4	18	1.411	1.00	NPTF18 IR08	HIR0016K08
NPTF 3/8	18	1.411	1.00	NPTF18 IR11	HIR0010K11
NPTF 1/2	14	1.814	1.35	NPTF14 IR16	HIR0013M16
NPTF 3/4	14	1.814	1.35	NPTF14 IR16	HIR0016P16
NPTF 1	11.5	2.209	1.64	NPTF11.5 IR16	HIR0020P16
NPTF 1 1/4	11.5	2.209	1.64	NPTF11.5 IR16	HIR0025R16
NPTF 1 1/2	11.5	2.209	1.64	NPTF11.5 IR16	HIR0032S16
NPTF 2	11.5	2.209	1.64	NPTF11.5 IR16	HIR0032S16
NPTF 2 1/2	8	3.175	2.39	NPTF8 IR16	HIR0040T16
NPTF 3	8	3.175	2.39	NPTF8 IR16	HIR0040T16
