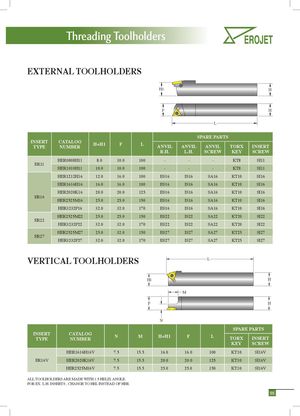

Threading Toolholders Threading Toolholders
EXTERNAL TOOLHOLDERS
H1 H
F H L
| S | PARE PART | S | |||||||
| INSERT | CATALOG | ||||||||
| TYPE | NUMBER | H=H1 | F | L | ANVIL | ANVIL | ANVIL | TORX | INSERT |
| R.H. | L.H. | SCREW | KEY | SCREW | |||||
| ER11 | HER0808H11 | 8.0 | 10.0 | 100 | - | - | - | KT8 | SI11 |
| HER1010H11 | 10.0 | 10.0 | 100 | - | - | - | KT8 | SI11 | |
| HER1212H16 | 12.0 | 16.0 | 100 | ES16 | IS16 | SA16 | KT10 | SI16 | |
| HER1616H16 | 16.0 | 16.0 | 100 | ES16 | IS16 | SA16 | KT10 | SI16 | |
| HER2020K16 | 20.0 | 20.0 | 125 | ES16 | IS16 | SA16 | KT10 | SI16 | |
| ER16 | HER2525M16 | 25.0 | 25.0 | 150 | ES16 | IS16 | SA16 | KT10 | SI16 |
| HER3232P16 | 32.0 | 32.0 | 170 | ES16 | IS16 | SA16 | KT10 | SI16 | |
| ER22 | HER2525M22 | 25.0 | 25.0 | 150 | ES22 | IS22 | SA22 | KT20 | SI22 |
| HER3232P22 | 32.0 | 32.0 | 170 | ES22 | IS22 | SA22 | KT20 | SI22 | |
| ER27 | HER2525M27 | 25.0 | 32.0 | 150 | ES27 | IS27 | SA27 | KT25 | SI27 |
| HER3232P27 | 32.0 | 32.0 | 170 | ES27 | IS27 | SA27 | KT25 | SI27 |
VERTICAL TOOLHOLDERS L H1 H M F H
N
| INSERT TYPE | CATALOG NUMBER | N | M | H=H1 | F | L | SPARE TORX | PARTS INSERT |
| KEY | SCREW | |||||||
| HER1616H16V | 7.5 | 15.5 | 16.0 | 16.0 | 100 | KT10 | SI16V | |
| ER16V | HER2020K16V | 7.5 | 15.5 | 20.0 | 20.0 | 125 | KT10 | SI16V |
| HER2525M16V | 7.5 | 15.5 | 25.0 | 25.0 | 150 | KT10 | SI16V |
ALL TOOLHOLDERS ARE MADE WITH 1.5 HELIX ANGLE. FOR EX. L.H. INSERTS , CHANGE TO HEL INSTEAD OF HER.
