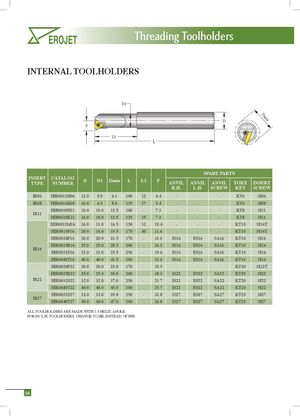

Threading Toolholders Technical Section
INTERNAL TOOLHOLDERS
F L1
D1
Dmin D
| INSERT | CATALOG | D | D1 | Di | L | L1 | F | SP | ARE PART | S | ||
| TYPE | NUMBER | mn | ANVIL | ANVIL | ANVIL | TORX | INSERT | |||||
| R.H. | L.H. | SCREW | KEY | SCREW | ||||||||
| IR06 | HIR0012H06 | 12.0 | 5.0 | 6.1 | 100 | 12 | 4.4 | - | - | - | KT6 | SI06 |
| IR08 | HIR0016K08 | 16.0 | 6.5 | 8.0 | 125 | 17 | 5.4 | - | - | - | KT6 | SI08 |
| IR11 | HIR0010H11 | 10.0 | 10.0 | 12.5 | 100 | - | 7.3 | - | - | - | KT8 | SI11 |
| HIR0010K11 | 16.0 | 10.0 | 12.5 | 125 | 25 | 7.3 | - | - | - | KT8 | SI11 | |
| HIR0013M16 | 16.0 | 13.0 | 16.5 | 150 | 32 | 10.4 | - | - | - | KT10 | SI16T | |
| HIR0016P16 | 20.0 | 16.0 | 19.5 | 170 | 40 | 11.6 | - | - | - | KT10 | SI16T | |
| HIR0020P16 | 20.0 | 20.0 | 23.5 | 170 | - | 13.6 | IS16 | ES16 | SA16 | KT10 | SI16 | |
| IR16 | HIR0025R16 | 25.0 | 25.0 | 28.5 | 200 | - | 16.3 | IS16 | ES16 | SA16 | KT10 | SI16 |
| HIR0032S16 | 32.0 | 32.0 | 35.5 | 250 | - | 19.6 | IS16 | ES16 | SA16 | KT10 | SI16 | |
| HIR0040T16 | 40.0 | 40.0 | 43.5 | 300 | - | 23.6 | IS16 | ES16 | SA16 | KT10 | SI16 | |
| HIR0020P22 | 20.0 | 20.0 | 25.0 | 170 | - | 15.5 | - | - | - | KT20 | SI22T | |
| HIR0025R22 | 25.0 | 25.0 | 30.0 | 200 | - | 18.3 | IS22 | ES22 | SA22 | KT20 | SI22 | |
| IR22 | HIR0032S22 | 32.0 | 32.0 | 37.0 | 250 | - | 21.7 | IS22 | ES22 | SA22 | KT20 | SI22 |
| HIR0040T22 | 40.0 | 40.0 | 45.0 | 300 | - | 25.7 | IS22 | ES22 | SA22 | KT20 | SI22 | |
| HIR0032S27 | 32.0 | 32.0 | 39.0 | 250 | - | 22.8 | IS27 | ES27 | SA27 | KT25 | SI27 | |
| IR27 | HIR0040T27 | 40.0 | 40.0 | 47.0 | 300 | - | 26.8 | IS27 | ES27 | SA27 | KT25 | SI27 |
ALL TOOLHOLDERS ARE MADE WITH 1.5 HELIX ANGLE. FOR IN. L.H. TOOLHODERS, CHANGE TO HIL INSTEAD OF HIR.
