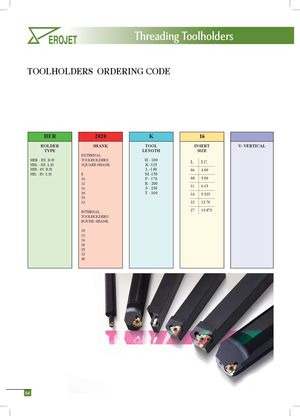

Threading Toolholders Threading Toolholders
TOOLHOLDERS ORDERING CODE
| HER | 2020 | K | 16 | ||
| HOLDER | SHANK | TOOL | V- VERTICAL INSERT | ||
| TYPE | LENGTH | SIZE | |||
| EXTERNAL | |||||
| HER - EX. R.H | TOOLHOLDERS | H - 100 | L | I.C. | |
| HEL - EX. L.H | SQUARE SHANK | K -125 | |||
| HIR - IN. R.H | L -140 | 06 | 4.00 | ||
| HIL - IN. L.H | 8 | M -150 | |||
| 10 | P - 170 | 08 | 5.00 | ||
| 12 | R - 200 | ||||
| S - 250 | 11 | 6.35 | |||
| 16 | |||||
| 20 | T - 300 | 16 | 9.525 | ||
| 25 | |||||
| 32 | 22 | 12.70 | |||
| INTERNAL | 27 | 15.875 |
TOOLHOLDERS ROUND SHANK 10 12
16 20 25 32 40
