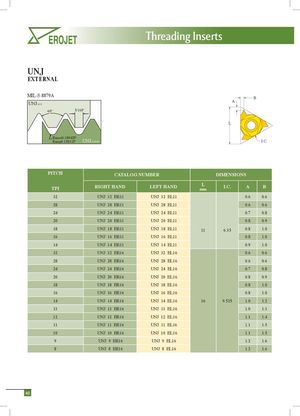

Каталог Erojet резьбонарезные пластины и державки - страница 42
Навигация
Каталог Erojet монолитные резбофрезы
UNJ
EXTERNAL
MIL-S-8879A
B UNJ A NUT 60° 5/16P L Rmax0.18042P UNJ Rmin0.15011P I.C. SCREW
| PITCH | CATALOG | NUMBER | DIMENSI | ONS | ||
| TPI | RIGHT HAND | LEFT HAND | L mm | I.C. | A | B |
| 32 | UNJ 32 ER11 | UNJ 32 EL11 | 0.6 | 0.6 | ||
| 28 | UNJ 28 ER11 | UNJ 28 EL11 | 0.6 | 0.6 | ||
| 24 | UNJ 24 ER11 | UNJ 24 EL11 | 0.7 | 0.8 | ||
| 20 | UNJ 20 ER11 | UNJ 20 EL11 | 0.8 | 0.9 | ||
| 18 | UNJ 18 ER11 | UNJ 18 EL11 | 11 | 6.35 | 0.8 | 1.0 |
| 16 | UNJ 16 ER11 | UNJ 16 EL11 | 0.8 | 1.0 | ||
| 14 | UNJ 14 ER11 | UNJ 14 EL11 | 0.9 | 1.0 | ||
| 32 | UNJ 32 ER16 | UNJ 32 EL16 | 0.6 | 0.6 | ||
| 28 | UNJ 28 ER16 | UNJ 28 EL16 | 0.6 | 0.6 | ||
| 24 | UNJ 24 ER16 | UNJ 24 EL16 | 0.7 | 0.8 | ||
| 20 | UNJ 20 ER16 | UNJ 20 EL16 | 0.8 | 0.9 | ||
| 18 | UNJ 18 ER16 | UNJ 18 EL16 | 0.8 | 1.0 | ||
| 16 | UNJ 16 ER16 | UNJ 16 EL16 | 0.8 | 1.0 | ||
| 14 | UNJ 14 ER16 | UNJ 14 EL16 | 16 | 9.525 | 1.0 | 1.2 |
| 13 | UNJ 13 ER16 | UNJ 13 EL16 | 1.0 | 1.3 | ||
| 12 | UNJ 12 ER16 | UNJ 12 EL16 | 1.1 | 1.4 | ||
| 11 | UNJ 11 ER16 | UNJ 11 EL16 | 1.1 | 1.5 | ||
| 10 | UNJ 10 ER16 | UNJ 10 EL16 | 1.1 | 1.5 | ||
| 9 | UNJ 9 ER16 | UNJ 9 EL16 | 1.2 | 1.6 | ||
| 8 | UNJ 8 ER16 | UNJ 8 EL16 | 1.2 | 1.6 |
